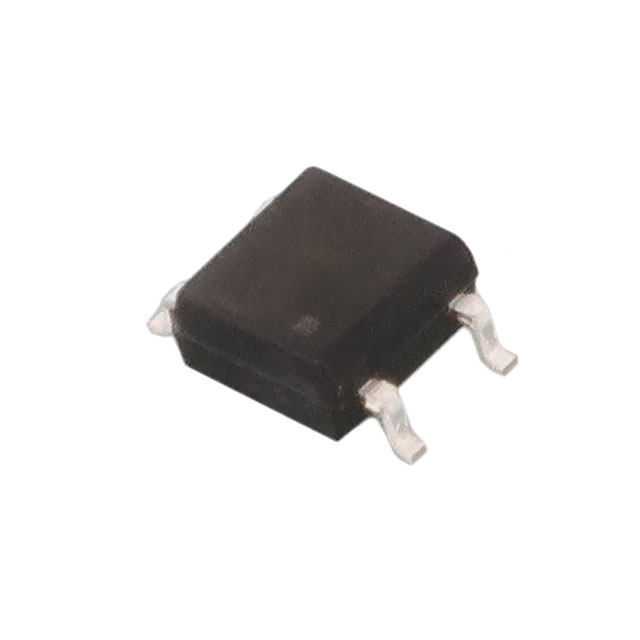

CPC1019N

Share

Or copy the link below:

Mfr.Part #
CPC1019N
Manufacturer
Littelfuse
Package / Case
4-SOP (0.150, 3.81mm)
Datasheet
Download
Description
SSR RELAY SPST-NO 750MA 0-60V
Stock
41,558
In Stock :
41,558

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Littelfuse
Product Category :
Solid State Relays
Product Type :
SSR - Solid State Relays
Voltage - Load :
0V~60V
Isolation Voltage :
1.5kV
Moisture Sensitivity Level (MSL) :
3 (168 Hours)
Output Type :
AC, DC
Operating Temperature Range :
-40 → +85°C
Input Current :
50mA
Dimensions :
4.089 x 3.81 x 2.1203mm
Optoelectronic Device Type :
TRANSISTOR OUTPUT SSR
Output Voltage (Max) :
60(V)
Width :
3.8mm
Max Operating Temperature :
85°C
Throw Configuration :
SPST
Brand :
IXYS Integrated Circuits
Base Product Number :
CPC1019
Min Operating Temperature :
-40°C
Number of Pins :
4
Input Type :
DC
Capacitance :
60pF
Supplier Device Package :
4-SOP
Max Output Voltage :
60V
Terminal Type :
PCB Pin
Operating Temperature Classification :
Industrial
HTS Code :
8541.40.95.00
Standards Met :
CSA, EN/IEC 60950-1, Certificate B 13 12 82667 003, UL File E76270
Contact Configuration :
SPST
Termination :
Gull wing
Pin Count :
4
Series :
CPC, OptoMOS®
Mounting :
Surface Mount
Package Type :
SOP
Product Status :
Active
Relay Type :
OptoMOS
Isolation Voltage-Max :
1500 V
Circuit Arrangement :
1 FORM A
Schedule B :
8536410030
Termination Style :
Gull wing
Package / Case :
4-SOP (0.150, 3.81mm)
On-State Resistance (Max) :
600mOhms
Type :
Miniature
Input Voltage :
1.4(V)
Number of Poles :
1
Radiation Hardening :
No
Mounting Style :
PCB Mount
Product :
Solid State Relays
Contact Form :
SPST-NO (1 Form A)
Special Features :
Arc-Free With No Snubbing Circuits, Immune to Radiate FM Interface, No EMI/RFI Generation, Wave Solderable
Factory Lead Time :
8 Weeks
Minimum Operating Temperature :
-40°C
Output Current :
750mA
Manufacturer :
IXYS
Tradename :
Clare
Packaging :
Tube
Height :
2.184mm
Load Type :
AC / DC
Voltage - Input :
1.2VDC
RoHS Status :
ROHS3 Compliant
Maximum Operating Temperature :
+85°C
Mount :
Surface Mount
Additional Feature :
CMOS COMPATIBLE, UL RECOGNIZED
Number of Elements :
1
Length :
4.089mm
Mounting Type :
Surface Mount
Circuit :
SPST-NO (1 Form A)
RoHS :
Compliant
Rad Hardened :
No
Depth :
3.81mm
Load Current :
750mA
Reach Compliance Code :
Compliant
Configuration :
Single
Output Device :
MOSFET
Pbfree Code :
yes
Subcategory :
Relays
Operating Temp Range :
-40C to 85C
Forward Current-Max :
0.05 A
Product Category :
Solid State Relays - PCB Mount
Package :
Tube
Published :
2008
Introducing Solid State Relays Littelfuse CPC1019N from Chip IC,where excellence meets affordability. This product stands out with its Number of Pins:4, Package / Case:4-SOP (0.150, 3.81mm), Type:Miniature, Mounting Type:Surface Mount, Circuit:SPST-NO (1 Form A), CPC1019N pinout, CPC1019N datasheet PDF, CPC1019N amp .Beyond Solid State Relays Littelfuse CPC1019N ,we also offer AQY412SX, AQW214EH, AQY211G2SX, Our vast inventory has you covered. Contact us now for immediate solutions.

Littelfuse CPC1019N


CPC1019N datasheet pdf and Solid State Relays product details from IXYS Integrated Circuits Division stock available at

Description: The IXYS CPC1019N is a single-pole, single-throw (SPST) solid state relay (SSR) designed for use in a variety of applications. It is rated for a maximum current of 750mA and a maximum voltage of 60V DC.

Features:
- SPST switching configuration
- Rated for a maximum current of 750mA
- Rated for a maximum voltage of 60V DC
- Low on-state resistance
- Low input current
- High switching speed
- High insulation resistance
- High surge voltage capability

Applications: The IXYS CPC1019N is suitable for a variety of applications, including motor control, lighting control, temperature control, and process control. It can also be used in industrial automation, HVAC systems, and other applications requiring a reliable, low-power switching solution.
