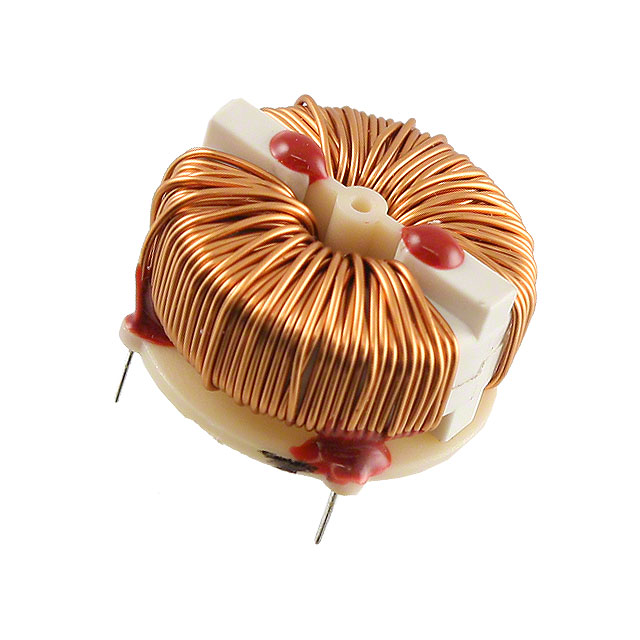

CMT3-1-R
Or copy the link below:
- Mfr.Part #
- CMT3-1-R
- Manufacturer
- Eaton-Electronics Division
- Package / Case
- Horizontal, 4 PC Pin
- Datasheet
- Download
- Description
- CMC 5.4MH 2A 2LN TH
- Stock
- 49,079
- In Stock ：
- 49,079
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Eaton-Electronics Division
- Product Category :
- Common Mode Chokes
- Max DC Current :
- 2A
- Termination :
- Radial
- Filter Type :
- Power Line
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lead Pitch :
- 15mm
- Current Rating (Max) :
- 2A
- Lead/Base Style :
- Pin
- Lead Free :
- Lead Free
- Packaging :
- Bulk
- Height :
- 13.9954mm
- Published :
- 2015
- Current :
- 2A
- Diameter :
- 25mm
- Size / Dimension :
- 0.984Lx0.984W 25.00mmx25.00mm
- Width :
- 24.9936mm
- Series :
- CMT
- Inductance @ Frequency :
- 5.4mH @ 10kHz
- Height (Max) :
- 0.551 14.00mm
- Inductance :
- 5.4 mH
- DC Current :
- 2A
- Mounting Type :
- Through Hole
- Test Frequency :
- 10kHz
- Min Operating Temperature :
- -40°C
- Core Material :
- Ferrite
- Weight :
- 11.793402g
- DC Resistance (DCR) (Max) :
- 120mOhm Typ
- Shielding :
- Unshielded
- Operating Temperature :
- -40°C~125°C
- Radiation Hardening :
- No
- Number of Lines :
- 2
- Max Operating Temperature :
- 85°C
- RoHS Status :
- RoHS Compliant
- Military Standard :
- Not
- Mount :
- Through Hole
- Package / Case :
- Horizontal, 4 PC Pin
- Length :
- 24.9936mm
- Datasheets
- CMT3-1-R
