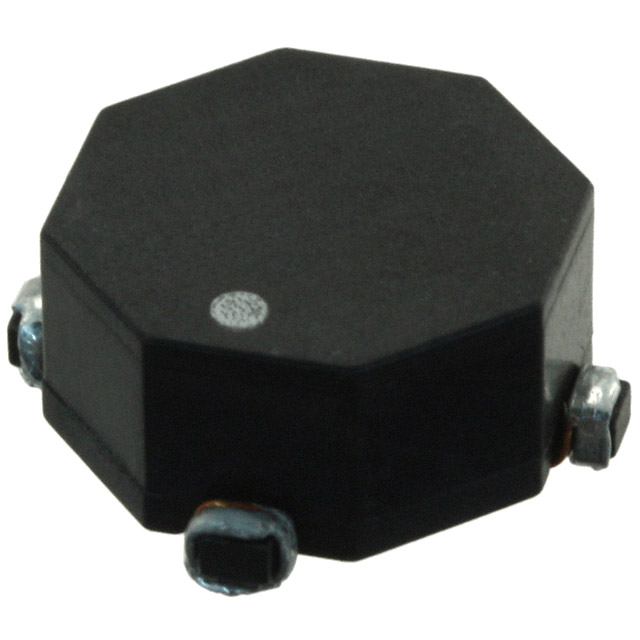

CMS3-11-R

Manufacturer :

Eaton-Electronics Division

Product Category :

Common Mode Chokes

Package / Case :

Horizontal, 4 PC Pad

Max DC Current :

1.2A

Published :

2007

Series :

CMS

Height :

5.9944mm

Lead Free :

Lead Free

RoHS Status :

RoHS Compliant

Factory Lead Time :

15 Weeks

Number of Pins :

4

Mounting Type :

Surface Mount

Military Standard :

Not

Test Frequency :

100kHz

Current :

1.2A

Number of Lines :

2

Shielding :

Unshielded

Depth :

13.97mm

Packaging :

Tape and Reel (TR)

Operating Temperature :

-40°C~160°C

DC Current :

1.2A

Current Rating (Max) :

1.2A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Weight :

2.267962g

Height (Max) :

0.236 6.00mm

Max Operating Temperature :

160°C

Termination :

SMD/SMT

Min Operating Temperature :

-40°C

Radiation Hardening :

No

Length :

13.97mm

Mount :

Surface Mount

Filter Type :

Power Line

Width :

13.97mm

DC Resistance (DCR) (Max) :

107mOhm Typ

Core Material :

Ferrite

Inductance @ Frequency :

648μH @ 100kHz

Inductance :

648 μH

Size / Dimension :

0.550Lx0.550W 13.97mmx13.97mm
