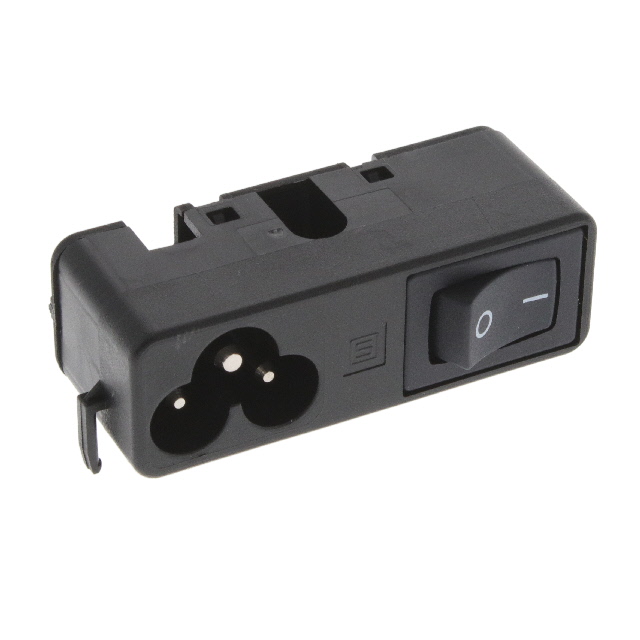

CMF3.1132.12

Manufacturer :

SCHURTER

Product Category :

Power Entry Modules (PEM)

Package / Case :

Module

MIL Conformance :

No

Body/Shell Style :

Socket

Min Operating Temperature :

-25°C

Connector Style :

IEC 320-C6

Ingress Protection :

IP40

Voltage - Rated DC :

250V

Voltage - UL :

125VAC

Housing Material :

Thermoplastic

Shell Material :

POLYETHYLENE

Gender :

Male

Accomodates a Fuse :

No

Voltage - Rated AC :

250V

Weight :

13.899998g

IEC Conformance :

yes

Orientation :

RIGHT ANGLE

Max Voltage Rating (AC) :

250V

Series :

CMF3

Panel Thickness :

0.079 2.00mm

Lead Free :

Lead Free

Current - IEC :

2.5A

Throw Configuration :

SPST

Connector Type :

Receptacle, Male Pins - Module

DIN Conformance :

No

Number of Positions :

3

Option :

GENERAL PURPOSE

Mounting Type :

Panel Mount, Snap-In; Through Hole, Right Angle

RoHS Status :

ROHS3 Compliant

Filter Type :

Unfiltered - Commercial

Termination :

Solder

Approval Agency :

CCC, cULus, VDE

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

Vendor Undefined

Mount :

Panel, Snap in, Through Hole

Switch Features :

Switch On-Off

Max Operating Temperature :

70°C

Current :

6A

ECCN Code :

EAR99

Current Rating :

6A

Total Number of Contacts :

3

Packaging :

Bulk

Feature :

Terminating Cover

Factory Lead Time :

13 Weeks

Flammability Rating :

UL94 V-0

Voltage - IEC :

250VAC

Material Flammability Rating :

UL94 V-0
