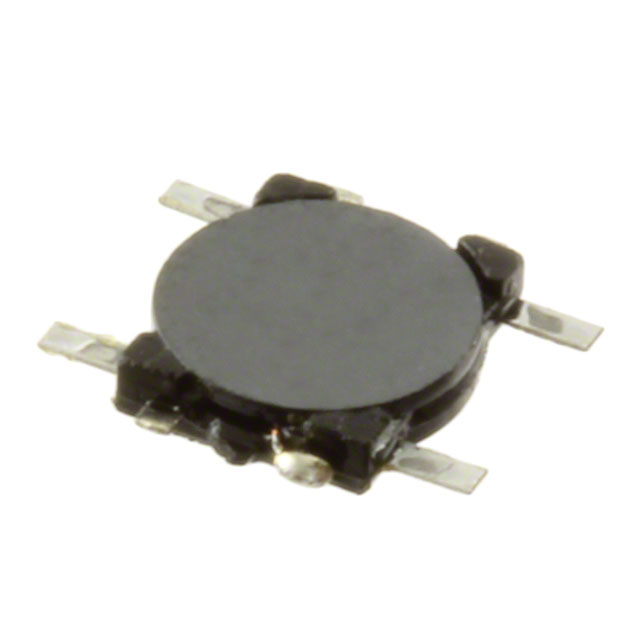

CMD4D06NP-4R7MC

Manufacturer :

Sumida Corporation

Product Category :

Fixed Inductors

Max DC Current :

750mA

Size / Dimension :

0.169Lx0.161W 4.30mmx4.10mm

Test Frequency :

100kHz

RoHS Status :

ROHS3 Compliant

Core Material :

Ferrite

Number of Terminations :

4

Inductor Type :

GENERAL PURPOSE INDUCTOR

Inductor Application :

POWER INDUCTOR

Terminal Shape :

Flat

Mounting Type :

Surface Mount

Height :

800μm

HTS Code :

8504.50.80.00

ECCN Code :

EAR99

DC Resistance (DCR) :

216mOhm Max

Shielding :

No

Depth :

5.8mm

Number of Functions :

1

Factory Lead Time :

15 Weeks

Package / Case :

Nonstandard

Packaging :

Tape and Reel (TR)

Series :

CMD

Case/Size Code :

1714

Terminal Placement :

DUAL IN-LINE

Inductance :

4.7μH

Mount :

Surface Mount

Pbfree Code :

yes

Height Seated (Max) :

0.031 0.80mm

Current Rating :

750mA

Radiation Hardening :

No

Tolerance :

±20%

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lead Free :

Lead Free

Shape/Size Description :

RECTANGULAR PACKAGE

Published :

2010
