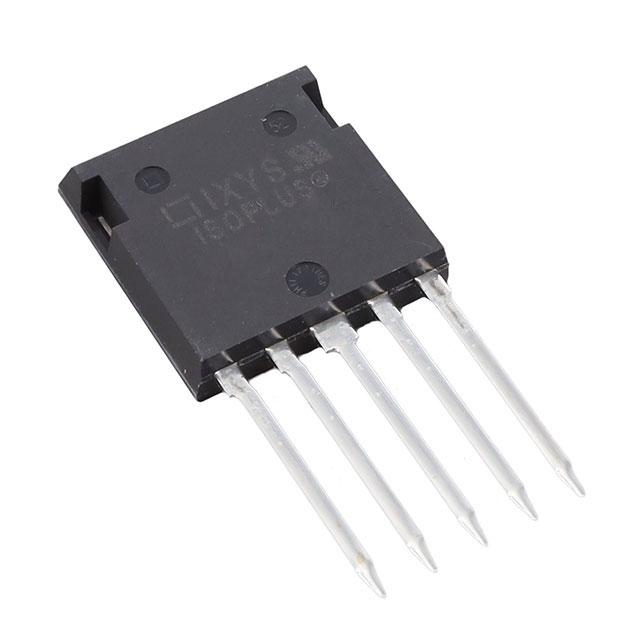

CMA30P1600FC

Manufacturer :

Littelfuse

Product Category :

Thyristors - SCRs - Modules

RMS On-state Current-Max :

47 A

Terminal Position :

Single

Features :

Planar passivated chip

RMS Current (Irms) :

47A

Pin Count :

5

Current - Hold (Ih) (Max) :

100mA

Product Status :

Active

Terminal Form :

THROUGH-HOLE

Current Rating :

30 A

Repetitive Peak Off-state Voltage :

1600V

Base Product Number :

CMA30

Surface Mount :

No

Structure :

Series Connection - All SCRs

Voltage - Off State :

1.6kV

Manufacturer :

IXYS

Case Connection :

Isolated

Terminal Finish :

Matte Tin (Sn)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Factory Lead Time :

32 Weeks

Voltage - Gate Trigger (Vgt) (Max) :

1V

Number of Elements :

1

On-State Current-Max :

30000A

Package / Case :

i4-Pac™-5

Current - Gate Trigger (Igt) (Max) :

55mA

Number of Terminals :

5

Qualification Status :

Not Qualified

HTS Code :

8541.30.00.80

Brand :

IXYS

Current - On State (It (AV)) (Max) :

30A

Type :

SCRs

Trigger Device Type :

SCR

Published :

2012

Repetitive Peak Reverse Voltage :

1600V

Configuration :

Single

Mounting Type :

Through Hole

Leakage Current (Max) :

2mA

Current - On State (It (RMS)) (Max) :

47A

Hold Current :

100mA

Operating Temperature :

-40°C~150°C TJ

Maximum Operating Temperature :

+ 150 C

Number of SCRs, Diodes :

2 SCRs

Current - Non Rep. Surge 50, 60Hz (Itsm) :

400A 430A

Number of Terminations :

5

Height :

21.34 mm

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

RoHS :

Details

JESD-30 Code :

R-PSIP-T5

Circuit Commutated Turn-off Time-Nom :

150 μs

DC Gate Trigger Current-Max :

80 mA

Additional Feature :

UL RECOGNIZED

Packaging :

Tube

Application :

DC motor control

Product Category :

SCRs

Holding Current-Max :

100 mA

Mount :

Through Hole

Pbfree Code :

yes

Package :

Tube

JESD-609 Code :

e3

Length :

20.29 mm

Product Type :

SCRs

Width :

5.21 mm

Non-Repetitive Pk On-state Cur :

430 A

Operating Temperature Range :

- 40 C to + 150 C

DC Gate Trigger Voltage-Max :

1.2 V

RoHS Status :

ROHS3 Compliant

Minimum Operating Temperature :

- 40 C

Vf - Forward Voltage :

1.3 V

Package Shape :

RECTANGULAR

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Reach Compliance Code :

Compliant

Series :

--

Mounting Style :

Through Hole
