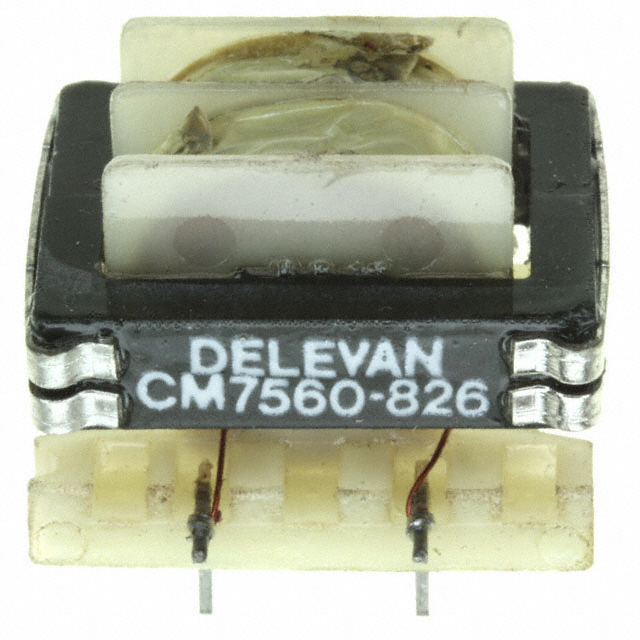

CM7560-826

Manufacturer :

API Delevan

Product Category :

Common Mode Chokes

Lead Free :

Contains Lead

Tolerance :

25%

Number of Functions :

2

Operating Temperature :

-55°C~125°C

Mount :

Through Hole

Series :

CM7560

DC Resistance (DCR) (Max) :

5.5Ohm

RoHS Status :

Non-RoHS Compliant

Filter Type :

DATA LINE FILTER

Termination :

Radial

Factory Lead Time :

8 Weeks

Size / Dimension :

1.071Lx0.858W 27.20mmx21.80mm

Package / Case :

Vertical, 4 PC Pin

Core Material :

Ferrite

Lead Pitch :

10.2mm

Radiation Hardening :

No

Shielding :

Unshielded

Mounting Type :

Through Hole

ECCN Code :

EAR99

Test Frequency :

1kHz

Inductance :

82 mH

Moisture Sensitivity Level (MSL) :

Not Applicable

JESD-609 Code :

e3

Lead/Base Style :

Pin

HTS Code :

8504.50.80.00

Terminal Finish :

Tin (Sn)

Max DC Current :

270mA

Height :

21.8694mm

Packaging :

Bulk

Pbfree Code :

No

Depth :

28.47mm

Number of Lines :

2

Published :

2010

Inductance @ Frequency :

82mH @ 1kHz
