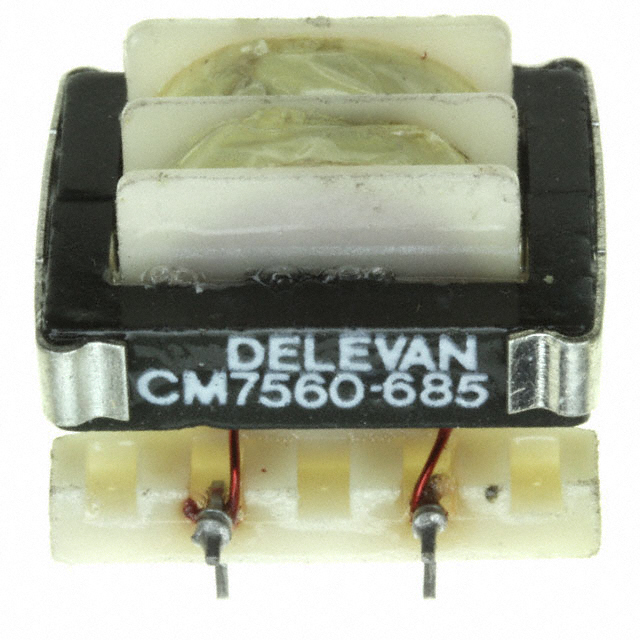

CM7560-685

Manufacturer :

API Delevan

Product Category :

Common Mode Chokes

Lead/Base Style :

Pin

Size / Dimension :

1.071Lx0.858W 27.20mmx21.80mm

Moisture Sensitivity Level (MSL) :

Not Applicable

Pbfree Code :

No

Test Frequency :

1kHz

Tolerance :

25%

Mounting Type :

Through Hole

JESD-609 Code :

e3

Core Material :

Ferrite

Height :

21.8694mm

Operating Temperature :

-55°C~125°C

Max DC Current :

880mA

Series :

CM7560

Inductance @ Frequency :

6.8mH @ 1kHz

Mount :

Through Hole

Terminal Finish :

Tin (Sn)

Number of Lines :

2

Rated Current :

0.88A

Factory Lead Time :

8 Weeks

Number of Functions :

2

Termination :

Radial

ECCN Code :

EAR99

RoHS Status :

Non-RoHS Compliant

Filter Type :

DATA LINE FILTER

Package / Case :

Vertical, 4 PC Pin

Packaging :

Bulk

Lead Pitch :

10.2mm

Shielding :

Unshielded

Radiation Hardening :

No

DC Resistance (DCR) (Max) :

600mOhm

Lead Free :

Contains Lead

Depth :

28.47mm

HTS Code :

8504.50.80.00

Inductance :

6.8 mH

Published :

2010
