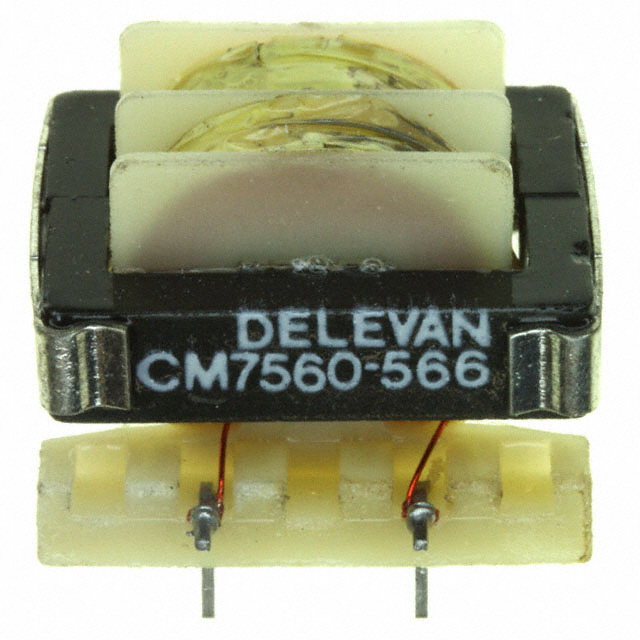

CM7560-566

Manufacturer :

API Delevan

Product Category :

Common Mode Chokes

Height :

21.8694mm

Depth :

28.47mm

Terminal Finish :

Tin (Sn)

Size / Dimension :

1.071Lx0.858W 27.20mmx21.80mm

Tolerance :

25%

Radiation Hardening :

No

JESD-609 Code :

e3

HTS Code :

8504.50.80.00

Filter Type :

DATA LINE FILTER

Mount :

Through Hole

Moisture Sensitivity Level (MSL) :

Not Applicable

DC Resistance (DCR) (Max) :

4Ohm

Number of Lines :

2

Rated Current :

0.35A

Factory Lead Time :

8 Weeks

Lead/Base Style :

Pin

Mounting Type :

Through Hole

ECCN Code :

EAR99

Lead Free :

Contains Lead

Operating Temperature :

-55°C~125°C

Termination :

Radial

Pbfree Code :

No

Inductance @ Frequency :

56mH @ 1kHz

Package / Case :

Vertical, 4 PC Pin

RoHS Status :

Non-RoHS Compliant

Inductance :

56 mH

Published :

2010

Packaging :

Bulk

Core Material :

Ferrite

Test Frequency :

1kHz

Number of Functions :

2

Shielding :

Unshielded

Lead Pitch :

10.2mm

Max DC Current :

350mA

Series :

CM7560
