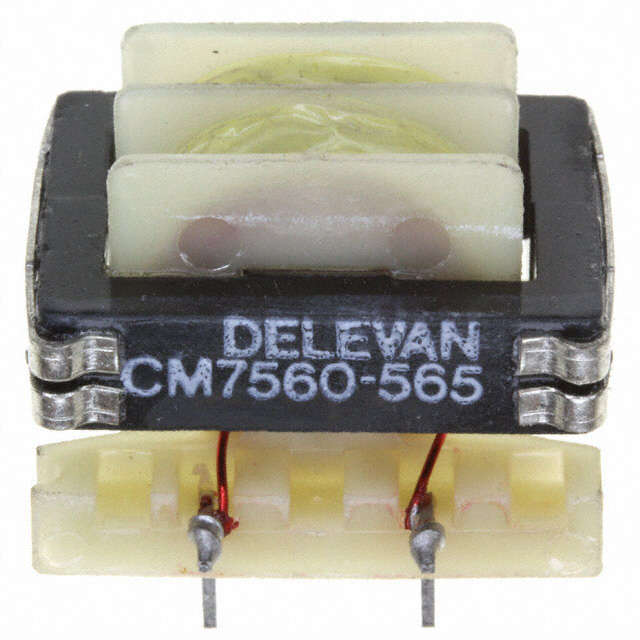

CM7560-565

Manufacturer :

API Delevan

Product Category :

Common Mode Chokes

Number of Functions :

2

Size / Dimension :

1.071Lx0.858W 27.20mmx21.80mm

Tolerance :

25%

Operating Temperature :

-55°C~125°C

Radiation Hardening :

No

Height :

21.8694mm

Shielding :

Unshielded

Moisture Sensitivity Level (MSL) :

Not Applicable

Mounting Type :

Through Hole

Terminal Finish :

Tin (Sn)

Inductance :

5.6 mH

Package / Case :

Vertical, 4 PC Pin

Filter Type :

DATA LINE FILTER

Inductance @ Frequency :

5.6mH @ 1kHz

Rated Current :

0.88A

HTS Code :

8504.50.80.00

Number of Lines :

2

Pbfree Code :

No

Factory Lead Time :

8 Weeks

RoHS Status :

Non-RoHS Compliant

Published :

2010

Depth :

28.47mm

ECCN Code :

EAR99

Series :

CM7560

Max DC Current :

880mA

DC Resistance (DCR) (Max) :

500MOhm

Core Material :

Ferrite

Packaging :

Bulk

Mount :

Through Hole

Lead Pitch :

10.2mm

JESD-609 Code :

e3

Lead Free :

Contains Lead

Termination :

Radial

Test Frequency :

1kHz

Lead/Base Style :

Pin
