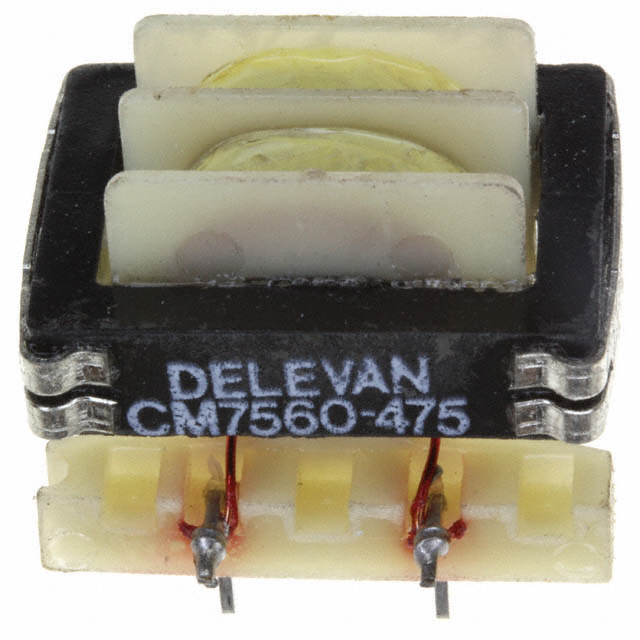

CM7560-475

Manufacturer :

API Delevan

Product Category :

Common Mode Chokes

Lead Pitch :

10.2mm

Height (Max) :

0.861 21.86mm

Current Rating (Max) :

880mA

Inductance @ Frequency :

4.7mH @ 1kHz

Shielding :

Unshielded

Depth :

28.47mm

Inductance :

4.7 mH

Number of Lines :

2

Length :

27.2034mm

Published :

2002

Max Operating Temperature :

125°C

Width :

27.2mm

Series :

CM7560

Packaging :

Bulk

Min Operating Temperature :

-55°C

Termination :

Radial

DC Resistance (DCR) (Max) :

450mOhm

Max DC Current :

880mA

Lead Free :

Contains Lead

Factory Lead Time :

8 Weeks

Operating Temperature :

-55°C~125°C

Radiation Hardening :

No

Package / Case :

Vertical, 4 PC Pin

Mount :

Through Hole

Tolerance :

25%

Size / Dimension :

1.071Lx0.858W 27.20mmx21.80mm

Mounting Type :

Through Hole

Height :

21.8694mm

Lead/Base Style :

Pin

Test Frequency :

1kHz

RoHS Status :

Non-RoHS Compliant

Moisture Sensitivity Level (MSL) :

Not Applicable

Core Material :

Ferrite
