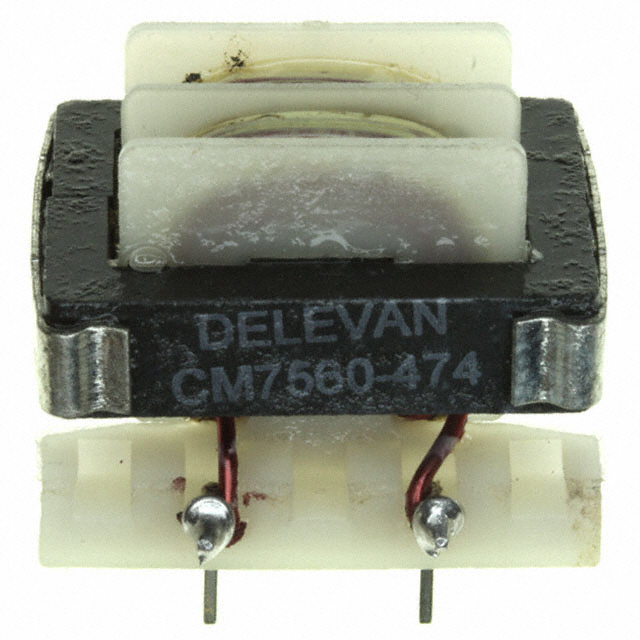

CM7560-474

Manufacturer :

API Delevan

Product Category :

Common Mode Chokes

Pbfree Code :

No

Inductance @ Frequency :

470μH @ 1kHz

Package / Case :

Vertical, 4 PC Pin

Terminal Finish :

Tin (Sn)

Filter Type :

DATA LINE FILTER

Core Material :

Ferrite

Published :

2002

Test Frequency :

1kHz

Lead/Base Style :

Pin

Series :

CM7560

Height :

21.8694mm

Packaging :

Bulk

Lead Pitch :

10.2mm

Termination :

Radial

Lead Free :

Contains Lead

Depth :

28.47mm

Mounting Type :

Through Hole

HTS Code :

8504.50.80.00

Size / Dimension :

1.071Lx0.858W 27.20mmx21.80mm

RoHS Status :

Non-RoHS Compliant

Radiation Hardening :

No

Inductance :

470 µH

Number of Lines :

2

Max DC Current :

3.5A

Moisture Sensitivity Level (MSL) :

Not Applicable

ECCN Code :

EAR99

Number of Functions :

2

Mount :

Through Hole

JESD-609 Code :

e3

Tolerance :

25%

DC Resistance (DCR) (Max) :

30mOhm

Shielding :

Unshielded

Factory Lead Time :

8 Weeks

Operating Temperature :

-55°C~125°C
