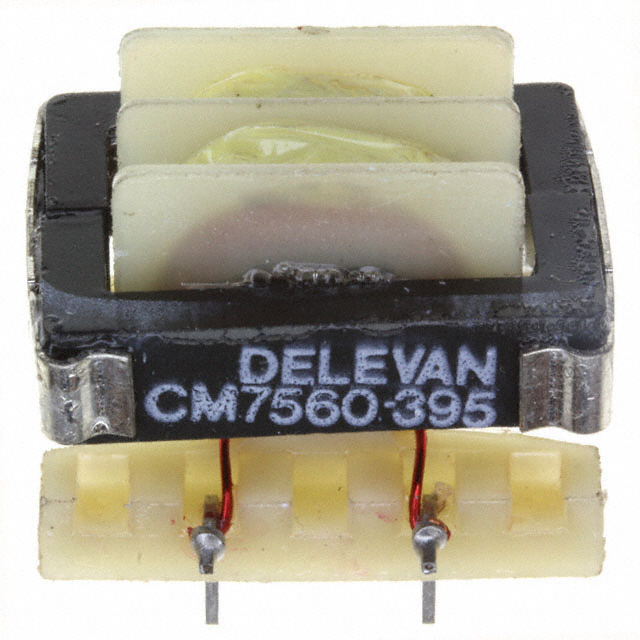

CM7560-395

Manufacturer :

API Delevan

Product Category :

Common Mode Chokes

Published :

2010

Depth :

28.47mm

Height :

21.8694mm

Test Frequency :

1kHz

Mounting Type :

Through Hole

Series :

CM7560

Radiation Hardening :

No

Lead/Base Style :

Pin

Size / Dimension :

1.071Lx0.858W 27.20mmx21.80mm

Shielding :

Unshielded

Lead Pitch :

10.2mm

RoHS Status :

Non-RoHS Compliant

Pbfree Code :

No

Packaging :

Bulk

Core Material :

Ferrite

Factory Lead Time :

8 Weeks

Inductance :

3.9 mH

HTS Code :

8504.50.80.00

Inductance @ Frequency :

3.9mH @ 1kHz

Max DC Current :

1.1A

ECCN Code :

EAR99

Number of Lines :

2

Moisture Sensitivity Level (MSL) :

Not Applicable

Mount :

Through Hole

Package / Case :

Vertical, 4 PC Pin

DC Resistance (DCR) (Max) :

400mOhm

JESD-609 Code :

e3

Lead Free :

Contains Lead

Filter Type :

DATA LINE FILTER

Operating Temperature :

-55°C~125°C

Number of Functions :

2

Termination :

Radial

Tolerance :

25%

Terminal Finish :

Tin (Sn)
