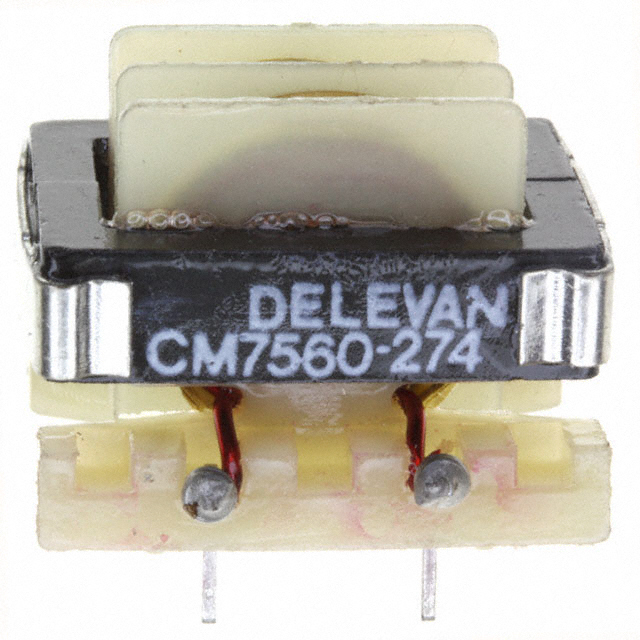

CM7560-274

Manufacturer :

API Delevan

Product Category :

Common Mode Chokes

Terminal Finish :

Tin (Sn)

HTS Code :

8504.50.80.00

DC Resistance (DCR) (Max) :

25mOhm

Operating Temperature :

-55°C~125°C

Height :

21.8694mm

Published :

2002

JESD-609 Code :

e3

Series :

CM7560

Moisture Sensitivity Level (MSL) :

Not Applicable

Lead/Base Style :

Pin

Mounting Type :

Through Hole

Mount :

Through Hole

Depth :

28.47mm

RoHS Status :

Non-RoHS Compliant

Lead Free :

Contains Lead

Number of Lines :

2

Factory Lead Time :

8 Weeks

Tolerance :

25%

Filter Type :

DATA LINE FILTER

Termination :

Radial

Lead Pitch :

10.2mm

Number of Functions :

2

Pbfree Code :

No

Inductance :

270 µH

Size / Dimension :

1.071Lx0.858W 27.20mmx21.80mm

Shielding :

Unshielded

Package / Case :

Vertical, 4 PC Pin

ECCN Code :

EAR99

Core Material :

Ferrite

Max DC Current :

4.5A

Inductance @ Frequency :

270μH @ 1kHz

Test Frequency :

1kHz

Radiation Hardening :

No

Packaging :

Bulk
