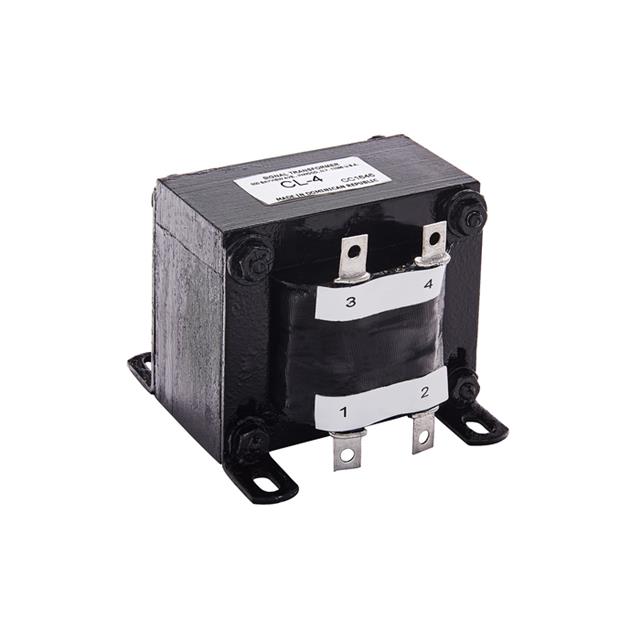

CL-4-8
Or copy the link below:
- Mfr.Part #
- CL-4-8
- Manufacturer
- Signal Transformer
- Package / Case
- Nonstandard
- Datasheet
- Download
- Description
- INDUCT ARRAY 2 COIL 5MH CHA MNT
- Stock
- 26,558
- In Stock ：
- 26,558
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Signal Transformer
- Product Category :
- Arrays, Signal Transformers
- Current Rating - Parallel :
- 8A
- Factory Lead Time :
- 16 Weeks
- Published :
- 2009
- Number of Coils :
- 2
- Size / Dimension :
- 3.000Lx2.874W 76.20mmx73.00mm
- Current :
- 4A
- RoHS Status :
- ROHS3 Compliant
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Number of Terminations :
- 4
- DC Resistance (DCR) - Series :
- 300mOhm
- Mounting Type :
- Chassis Mount
- Height :
- 2.500 63.50mm
- Inductance :
- 5000 µH
- Inductance - Connected In Parallel :
- 5mH
- HTS Code :
- 8504.50.80.00
- ECCN Code :
- EAR99
- Shielding :
- No
- Inductor Type :
- GENERAL PURPOSE INDUCTOR
- Package / Case :
- Nonstandard
- Terminal Shape :
- SOLDER POST
- Reach Compliance Code :
- Unknown
- DC Resistance (DCR) - Parallel :
- 75mOhm
- Packaging :
- Bulk
- Number of Functions :
- 2
- Mount :
- Chassis Mount
- Inductance - Series :
- 20 mH
- Inductance - Parallel :
- 5 mH
- Inductor Application :
- FILTER CHOKE
- Terminal Placement :
- DUAL IN-LINE
- Series :
- CL
- Special Feature :
- PARALLEL CONNECTED
- Shape/Size Description :
- RECTANGULAR PACKAGE
- Datasheets
- CL-4-8
CL-4-8 datasheet pdf and Arrays, Signal Transformers product details from Signal Transformer stock available at
