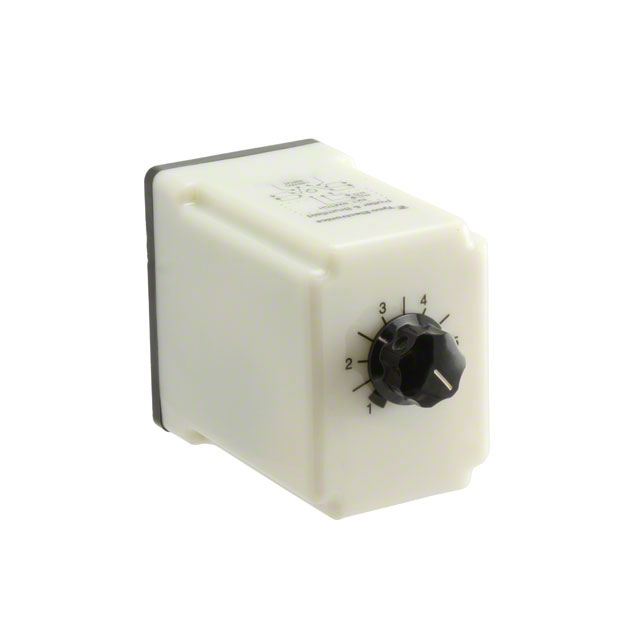

CHD-38-30013

Manufacturer :

TE Connectivity Potter & Brumfield Relays

Product Category :

Time Delay Relays

Max Voltage Rating (DC) :

30V

Contact (AC) Max Rating R Load :

10A@277VAC

Reference Standard :

CSA; UL

Voltage - Supply :

24VDC

Contact/Output Supply Type :

AC/DC

Min Operating Temperature :

-10°C

Adjustable Time Delay-Min :

1 s

Max Operating Temperature :

55°C

HTS Code :

8536.41.00.20

Number of Pins :

11

Timing Initiate Method :

Input Voltage, Trigger Signal

ELV :

Non-Compliant

Delay Time :

1 Sec ~ 180 Sec

Mount :

Socket

Coil Resistance :

192Ohm

Coil/Input Supply Type :

DC

Contact Current Rating :

10A

Lead Free :

Not Applicable

Timing Adjustment Method :

Hand Dial

Body Length or Diameter :

61.1mm

Function :

Off-Delay

Max Voltage Rating (AC) :

277V

Physical Dimension :

61.1mm x 45.2mm x 74.6mm

Max Current Rating :

10A

Published :

2003

Coil Current(DC)-Max :

0.125A

Circuit :

DPDT (2 Form C)

Relay Type :

Mechanical Relay

RoHS Status :

Non-RoHS Compliant

ECCN Code :

EAR99

Moisture Sensitivity Level (MSL) :

Not Applicable

Electrical Life :

100000 Cycle(s)

Contact Rating @ Voltage :

10A @ 277VAC

Coil Voltage (DC) :

24V

Coil Power :

3000mW

Termination Style :

Plug In, 11 Pin (Octal)

Termination :

PLUG

Series :

CH

Body Breadth :

45.2 mm

Contact (DC) Max Rating R Load :

10A@30VDC

Throw Configuration :

DPDT

Body Height :

74.6mm

Reach Compliance Code :

Unknown

Contact Material :

Cadmium, Silver

Relay Action :

Momentary

Mounting Type :

Socketable
