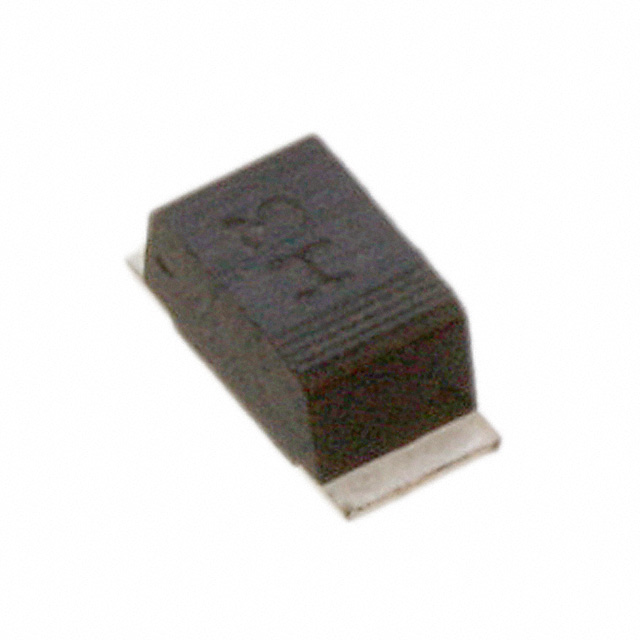

CFRM104-HF

Manufacturer :

Comchip Technology

Product Category :

Diodes - Rectifiers - Single

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Operating Temperature - Junction :

-55°C~150°C

Capacitance @ Vr, F :

15pF @ 4V 1MHz

Average Rectified Current :

1A

Time@Peak Reflow Temperature-Max (s) :

30

Package / Case :

SOD-123T

Published :

2011

JESD-609 Code :

e3

Peak Reflow Temperature (Cel) :

260

Output Current-Max :

1A

Current - Reverse Leakage @ Vr :

5µA @ 400V

ECCN Code :

EAR99

Terminal Finish :

Tin

Current - Average Rectified (Io) :

1A DC

Diode Type :

Standard

Reverse Recovery Time :

150ns

Mount :

Surface Mount

Max Reverse Voltage (DC) :

400V

Mounting Type :

Surface Mount

HTS Code :

8541.10.00.80

Non-rep Pk Forward Current-Max :

30A

Voltage - Forward (Vf) (Max) @ If :

1.3V @ 1A

Number of Elements :

1

Configuration :

Single

Base Part Number :

CFRM104

Factory Lead Time :

10 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

ROHS3 Compliant

Packaging :

Tape and Reel (TR)

Operating Temperature (Max) :

150°C
