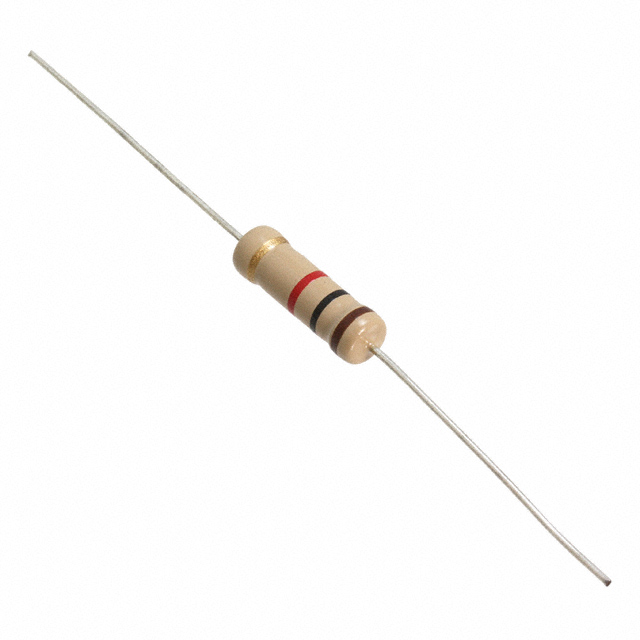

CFR200J100K

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Series :

CFR200, Neohm

Mounting Feature :

THROUGH HOLE MOUNT

Product Length (mm) :

16(mm)

Base Product Number :

CFR200

Product Category :

Carbon Film Resistors - Through Hole

Failure Rate :

Not Required

Number of Terminals :

2

Supplier Device Package :

Axial

Height - Seated (Max) :

--

Rated Temperature :

70 °C

Subcategory :

Resistors

HTS Code :

8533.10.00.65

Product Width :

-

Surface Mount :

No

Product Status :

Active

Operating Temperature :

-55°C ~ 155°C

Working Voltage :

500 V

Lead Diameter :

0.7 mm

Factory Lead Time :

14 Weeks, 5 Days

Temperature Coefficient :

-500, -100 ppm/°C

Diameter :

5.5 mm

Packaging :

Ammo

Tolerance :

±5%

Type :

Carbon Film

Power Rating(s) :

2(W)

Case Style :

Conformal Coated

ECCN Code :

EAR99

Product Diameter (mm) :

5.5(mm)

Technology :

Carbon Film

Resistance :

100 kOhm

Composition :

Carbon Film

Power Rating :

2.0000 W

Product Type :

Carbon Film Resistors

Resistance Tolerance :

5

JESD-609 Code :

e3

Product Length :

16

Product Depth (mm) :

Not Required(mm)

Termination Style :

Axial

Military Standard :

Not Required

Construction :

Cylindrical

Size / Dimension :

0.217 Dia x 0.630 L (5.50mm x 16.00mm)

Lead Length :

28 mm

Length :

16 mm

Package / Case :

Axial

Rated Power Dissipation (P) :

2 W

Lead Spacing (nom) :

Not Required(mm)

Mounting Style :

PCB Mount

Temperature Range @ Derated Power :

70 TO 155

Resistor Type :

High Reliability

Package Shape :

TUBULAR PACKAGE

Minimum Operating Temperature :

-55°C

RoHS :

Details

Maximum Operating Temperature :

+155°C

Number of Terminations :

2

Tolerance (+ or -) :

5%

Product Height (mm) :

Not Required(mm)

Power (Watts) :

2W

Voltage Rating :

500V

Package Length :

16 mm

Manufacturer :

TE Connectivity

Pbfree Code :

yes

Packing Method :

Ammo Pack

Qualification :

-

Terminal Finish :

Tin (Sn)

Package :

Cut Tape (CT);Tape and Box (TB);

Features :

--

Terminal Shape :

Wire

Brand :

TE Connectivity / Holsworthy

Operating Temp Range :

-55C to 155C

Flame-Proof Support :

No

Reach Compliance Code :

Compliant
