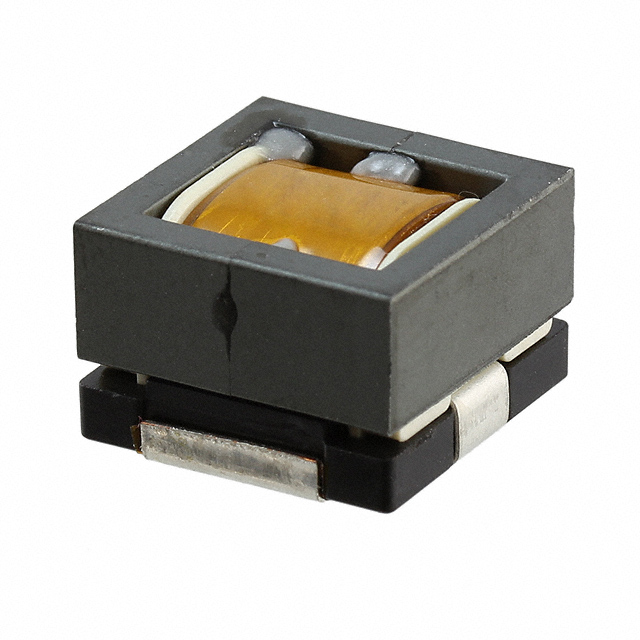

CEPH149NP-2R4MC

Manufacturer :

Sumida Corporation

Product Category :

Fixed Inductors

Max DC Current :

10A

Lead Free :

Lead Free

Pbfree Code :

yes

Material - Core :

Ferrite

Mounting Type :

Surface Mount

Depth :

15mm

ECCN Code :

EAR99

Package / Case :

Nonstandard

Inductor Application :

POWER INDUCTOR

Shielding :

No

Radiation Hardening :

No

Inductance :

2.4μH

DC Resistance (DCR) :

1.5mOhm Max

Number of Functions :

1

Tolerance :

±20%

Height Seated (Max) :

0.394 10.00mm

Number of Terminations :

3

Packaging :

Bulk

HTS Code :

8504.50.80.00

Series :

CEPH

Inductor Type :

GENERAL PURPOSE INDUCTOR

Operating Temperature :

-40°C~100°C

Size / Dimension :

0.575Lx0.575W 14.60mmx14.60mm

Terminal Shape :

WRAPAROUND

Terminal Placement :

ON CIRCLE

Packing Method :

Tape

Termination :

SMD/SMT

RoHS Status :

ROHS3 Compliant

Published :

2012

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current Rating :

10A

Test Frequency :

100kHz

Mount :

Surface Mount

Shape/Size Description :

RECTANGULAR PACKAGE

Case/Size Code :

5757

Height :

10.0076mm
