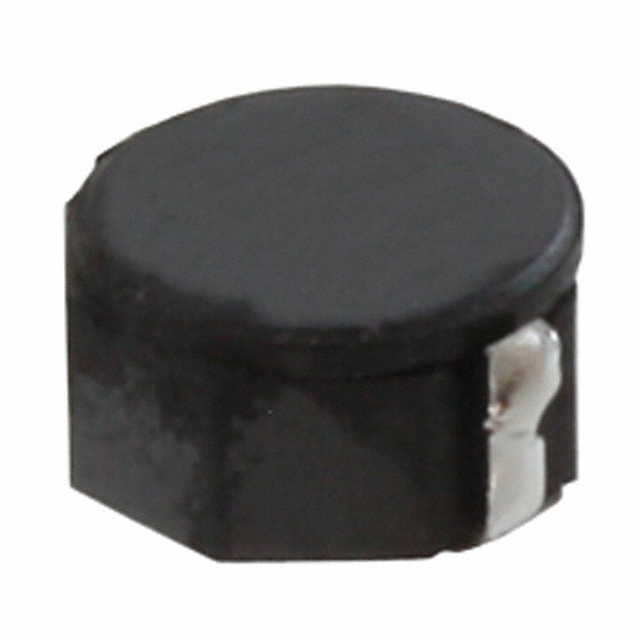

CDRH8D43NP-330NC

Manufacturer :

Sumida Corporation

Product Category :

Fixed Inductors

Factory Lead Time :

14 Weeks

Termination :

SMD/SMT

Material - Core :

Ferrite

Inductance :

33μH

Shape/Size Description :

RECTANGULAR PACKAGE

Inductor Application :

POWER INDUCTOR

Packaging :

Tape and Reel (TR)

Height Seated (Max) :

0.177 4.50mm

Radiation Hardening :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Tolerance :

±30%

Height :

4.5mm

Current - Saturation :

2.2A

Terminal Placement :

DUAL ENDED

Operating Temperature :

-40°C~100°C

Inductor Type :

GENERAL PURPOSE INDUCTOR

Packing Method :

TR

Current Rating :

1.4A

Size / Dimension :

0.315Lx0.315W 8.00mmx8.00mm

Test Frequency :

100kHz

Series :

CDRH8D43

Pbfree Code :

yes

Terminal Shape :

WRAPAROUND

Mounting Type :

Surface Mount

HTS Code :

8504.50.80.00

Published :

2012

Max DC Current :

1.4A

Mount :

Surface Mount

Number of Functions :

1

RoHS Status :

ROHS3 Compliant

Lead Free :

Lead Free

Case/Size Code :

3232

Package / Case :

Nonstandard

Depth :

8.3mm

Shielding :

yes

Number of Terminations :

2

ECCN Code :

EAR99

DC Resistance (DCR) :

125mOhm Max
