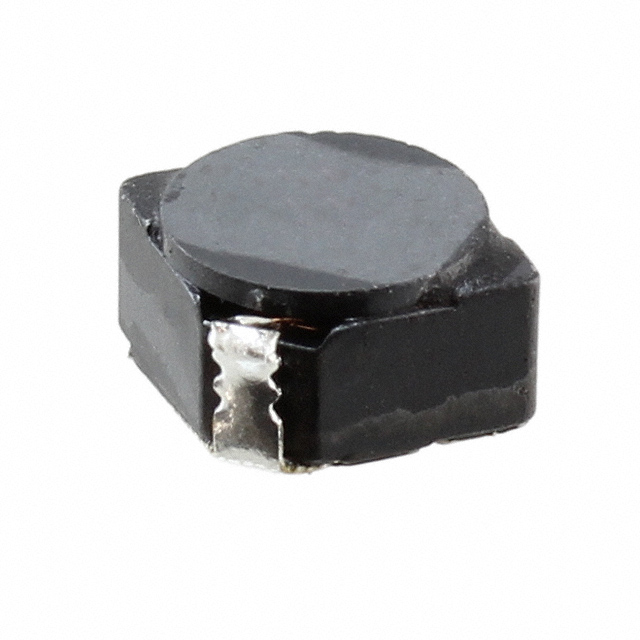

CDRH4D28NP-390NC

Manufacturer :

Sumida Corporation

Product Category :

Fixed Inductors

Depth :

5mm

Published :

2012

Factory Lead Time :

28 Weeks

Termination :

SMD/SMT

RoHS Status :

ROHS3 Compliant

Inductor Type :

GENERAL PURPOSE INDUCTOR

Weight :

200.005886mg

Series :

CDRH4D28

Tolerance :

±30%

Mount :

Surface Mount

Pbfree Code :

yes

Height Seated (Max) :

0.118 3.00mm

Case/Size Code :

1919

Number of Terminations :

2

Inductor Application :

POWER INDUCTOR

Operating Temperature :

-40°C~100°C

HTS Code :

8504.50.80.00

Material - Core :

Ferrite

Terminal Shape :

WRAPAROUND

ECCN Code :

EAR99

Size / Dimension :

0.185Lx0.185W 4.70mmx4.70mm

Shielding :

yes

Height :

3mm

Mounting Type :

Surface Mount

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal Placement :

DUAL ENDED

Current Rating :

500mA

Number of Functions :

1

Radiation Hardening :

No

Test Frequency :

100kHz

Lead Free :

Lead Free

Max DC Current :

500mA

Shape/Size Description :

RECTANGULAR PACKAGE

Package / Case :

Nonstandard

Inductance :

39μH

Packaging :

Tape and Reel (TR)

DC Resistance (DCR) :

383.7mOhm Max
