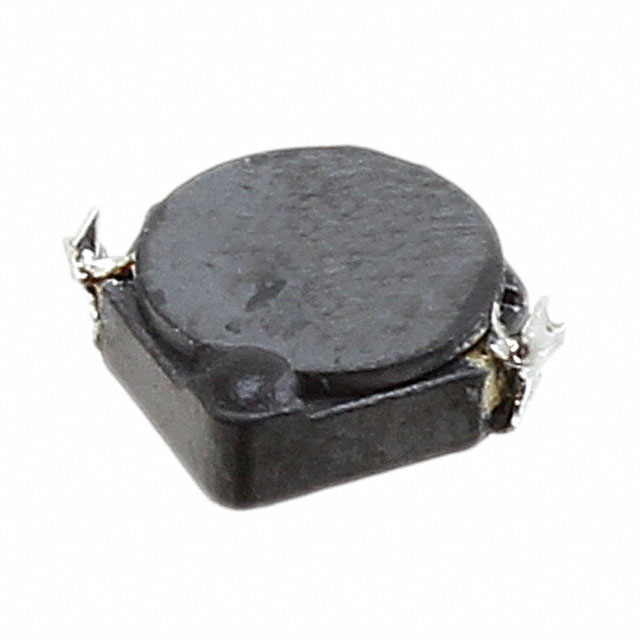

CDRH4D16NP-3R0NC

Manufacturer :

Sumida Corporation

Product Category :

Fixed Inductors

ECCN Code :

EAR99

Number of Functions :

1

Inductor Application :

POWER INDUCTOR

Height :

1.8mm

DC Resistance (DCR) :

53mOhm Max

Height Seated (Max) :

0.071 1.80mm

Series :

CDRH4D16

Core Material :

Ferrite

Shielding :

yes

Depth :

4.8mm

Lead Free :

Lead Free

Inductor Type :

GENERAL PURPOSE INDUCTOR

Terminal Shape :

WRAPAROUND

Max DC Current :

2.3A

Tolerance :

±25%

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current - Saturation :

1.75A

Pbfree Code :

yes

Terminal Placement :

DUAL ENDED

Shape/Size Description :

RECTANGULAR PACKAGE

Current Rating :

2.3A

Mount :

Surface Mount

Size / Dimension :

0.181Lx0.181W 4.60mmx4.60mm

Mounting Type :

Surface Mount

RoHS Status :

ROHS3 Compliant

Number of Terminations :

2

Published :

2010

Inductance :

3μH

Radiation Hardening :

No

Packaging :

Cut Tape (CT)

Factory Lead Time :

12 Weeks

Test Frequency :

100kHz

Operating Temperature :

-40°C~100°C

HTS Code :

8504.50.80.00

Case/Size Code :

1818

Packing Method :

TR

Package / Case :

Nonstandard
