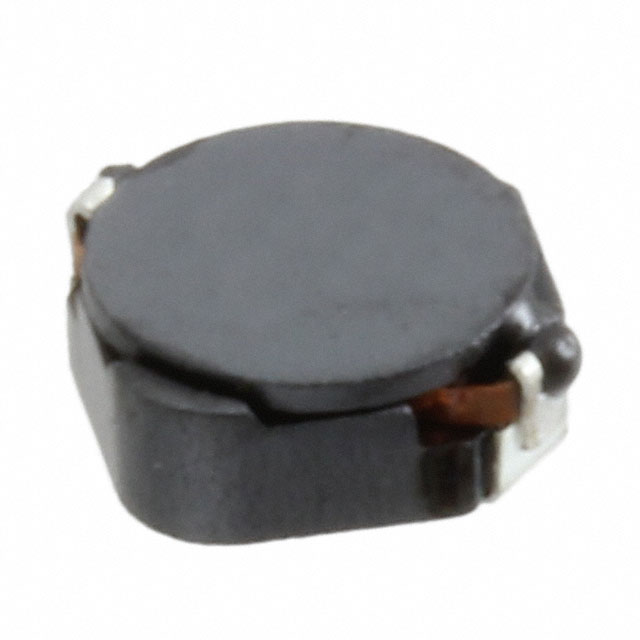

CDRH4D16FB/NP-100MC

Manufacturer :

Sumida Corporation

Product Category :

Fixed Inductors

Inductance :

10μH

Operating Temperature :

-40°C~105°C

Current - Saturation :

800mA

Terminal Shape :

WRAPAROUND

ECCN Code :

EAR99

Tolerance :

±20%

Size / Dimension :

0.157Lx0.157W 4.00mmx4.00mm

Mount :

Surface Mount

Mounting Type :

Surface Mount

Number of Terminations :

2

Current Rating :

1.2A

Package / Case :

Nonstandard

Packing Method :

TR

Inductor Type :

GENERAL PURPOSE INDUCTOR

Inductor Application :

POWER INDUCTOR

DC Resistance (DCR) :

118mOhm Max

Depth :

4.15mm

Terminal Placement :

DUAL ENDED

Published :

2010

Number of Functions :

1

Max DC Current :

1.2A

Shielding :

No

Packaging :

Cut Tape (CT)

RoHS Status :

ROHS3 Compliant

Radiation Hardening :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Case/Size Code :

1616

Core Material :

Ferrite

Height :

1.8mm

Shape/Size Description :

RECTANGULAR PACKAGE

Height Seated (Max) :

0.071 1.80mm

Series :

CDRH4D16FB

Termination :

SMD/SMT

Lead Free :

Lead Free

HTS Code :

8504.50.80.00

Factory Lead Time :

16 Weeks

Test Frequency :

100kHz
