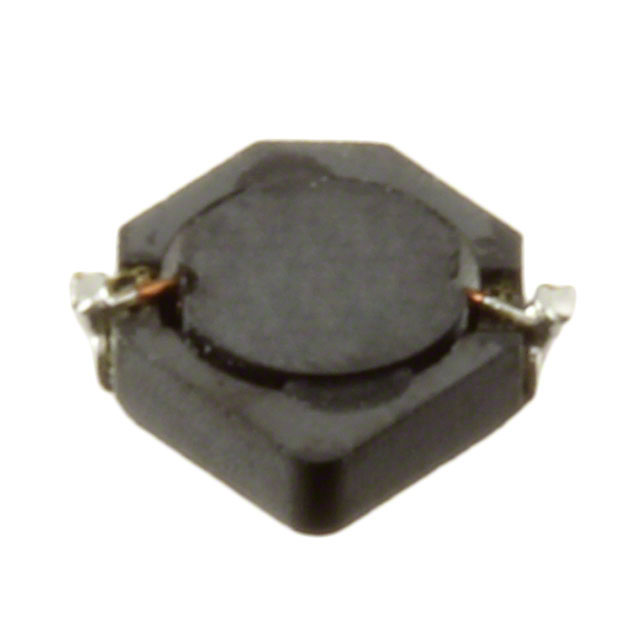

CDRH2D09NP-2R2MC

Manufacturer :

Sumida Corporation

Product Category :

Fixed Inductors

Inductor Application :

POWER INDUCTOR

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Depth :

3.2mm

Max DC Current :

600mA

Terminal Placement :

DUAL ENDED

Pbfree Code :

yes

Termination :

SMD/SMT

Package / Case :

Nonstandard

Size / Dimension :

0.118Lx0.118W 3.00mmx3.00mm

Terminal Shape :

WRAPAROUND

Published :

2007

Inductance :

2.2μH

Tolerance :

±25%

Series :

CDRH2D09

Number of Functions :

1

Height Seated (Max) :

0.039 1.00mm

DC Resistance (DCR) :

120mOhm

Test Frequency :

100kHz

Mount :

Surface Mount

Mounting Type :

Surface Mount

Inductor Type :

GENERAL PURPOSE INDUCTOR

Factory Lead Time :

12 Weeks

Radiation Hardening :

No

Shielding :

yes

Current Rating :

1.05A

Number of Terminations :

2

Material - Core :

Ferrite

Current - Saturation :

600mA

ECCN Code :

EAR99

HTS Code :

8504.50.80.00

Packaging :

Tape and Reel (TR)

Case/Size Code :

1212

RoHS Status :

ROHS3 Compliant

Shape/Size Description :

RECTANGULAR PACKAGE

Height :

1mm

Operating Temperature :

-40°C~105°C

Lead Free :

Lead Free
