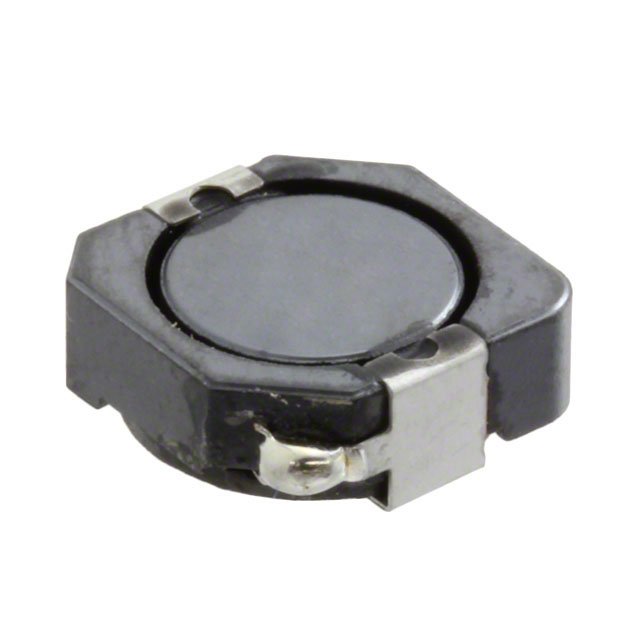

CDRH104RNP-151NC

Manufacturer :

Sumida Corporation

Product Category :

Fixed Inductors

Published :

2007

Number of Terminations :

2

Height Seated (Max) :

0.157 4.00mm

Operating Temperature :

-40°C~100°C

Mounting Type :

Surface Mount

Package / Case :

Nonstandard

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal Placement :

DUAL ENDED

Mount :

Surface Mount

Inductance :

150μH

Factory Lead Time :

15 Weeks

Shielding :

yes

Height :

4mm

Number of Functions :

1

Size / Dimension :

0.402Lx0.394W 10.20mmx10.00mm

HTS Code :

8504.50.80.00

Lead Free :

Lead Free

ECCN Code :

EAR99

Max DC Current :

850mA

Material - Core :

Ferrite

Series :

CDRH104R

Packaging :

Tape and Reel (TR)

Packing Method :

TR, 13 INCH

Test Frequency :

100kHz

Radiation Hardening :

No

Inductor Application :

POWER INDUCTOR

Weight :

1.500002g

Case/Size Code :

4039

Terminal Shape :

WRAPAROUND

Termination :

SMD/SMT

Shape/Size Description :

RECTANGULAR PACKAGE

Tolerance :

±30%

Depth :

10.3mm

DC Resistance (DCR) :

506mOhm Max

RoHS Status :

ROHS3 Compliant

Current - Saturation :

1.12A

Current Rating :

850mA

Inductor Type :

GENERAL PURPOSE INDUCTOR

Pbfree Code :

yes

Current Rating (Amps) :

1.15A
