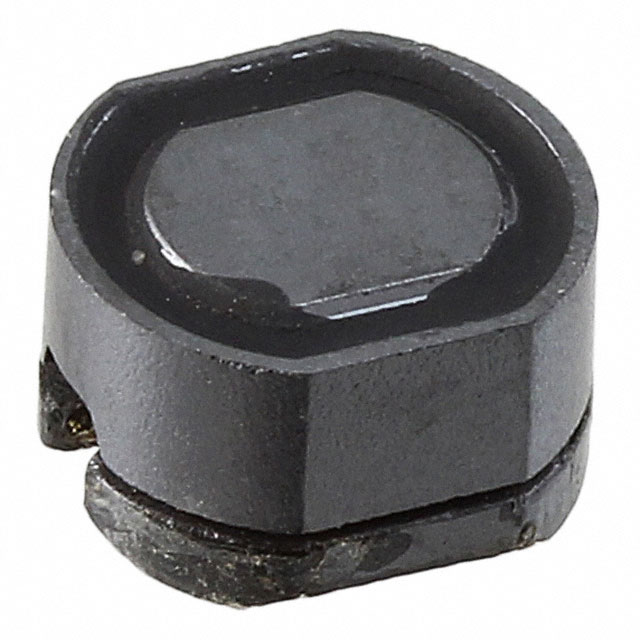

CDR74BNP-271KC

Manufacturer :

Sumida Corporation

Product Category :

Fixed Inductors

Depth :

7.35mm

Operating Temperature :

-25°C~80°C

Shielding :

yes

Package / Case :

Nonstandard

Published :

2010

Mounting Type :

Surface Mount

Terminal Shape :

ONE SURFACE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Height :

4.9mm

Tolerance :

±10%

Inductor Type :

GENERAL PURPOSE INDUCTOR

Mount :

Surface Mount

Height Seated (Max) :

0.193 4.90mm

Number of Functions :

1

Terminal Placement :

DUAL ENDED

Frequency - Self Resonant :

4.6MHz

Size / Dimension :

0.307Lx0.276W 7.80mmx7.00mm

Number of Terminations :

2

Packaging :

Tape and Reel (TR)

Radiation Hardening :

No

RoHS Status :

ROHS3 Compliant

HTS Code :

8504.50.80.00

Current Rating :

330mA

Inductor Application :

POWER INDUCTOR

Pbfree Code :

yes

Case/Size Code :

3229

Max DC Current :

330mA

ECCN Code :

EAR99

Shape/Size Description :

RECTANGULAR PACKAGE

Series :

CDR74B

Test Frequency :

1kHz

Material - Core :

Ferrite

DC Resistance (DCR) :

1.3Ohm Max

Inductance :

270μH
