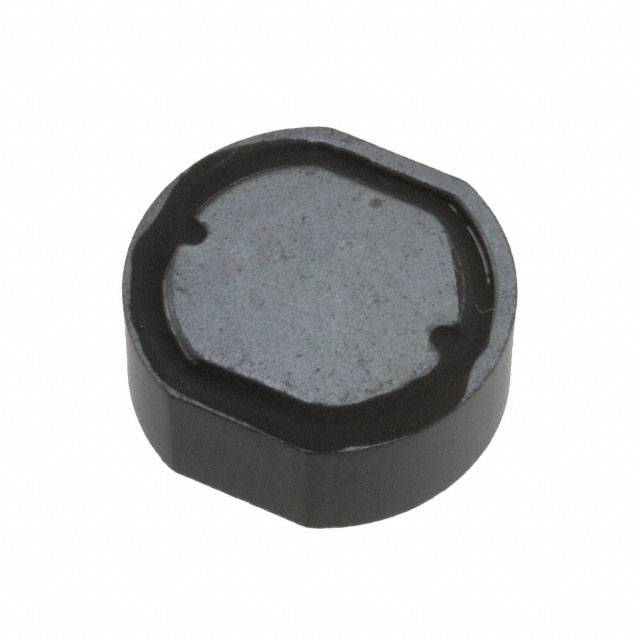

CDR125NP-100MC

Manufacturer :

Sumida Corporation

Product Category :

Fixed Inductors

Shielding :

yes

Mount :

Surface Mount

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

ECCN Code :

EAR99

Pbfree Code :

yes

Operating Temperature :

-40°C~100°C

Termination :

SMD/SMT

Height Seated (Max) :

0.232 5.90mm

Number of Functions :

1

Frequency - Self Resonant :

24.2MHz

Terminal Shape :

ONE SURFACE

Number of Terminations :

2

Tolerance :

±20%

Series :

CDR125

Height :

5.4mm

Factory Lead Time :

12 Weeks

Inductor Application :

POWER INDUCTOR

Inductor Type :

GENERAL PURPOSE INDUCTOR

Terminal Placement :

DUAL ENDED

Military Standard :

Not

HTS Code :

8504.50.80.00

Package / Case :

Nonstandard

Terminal Finish :

Tin/Copper (Sn/Cu)

Inductance :

10μH

Lead Free :

Lead Free

Case/Size Code :

5046

Depth :

12.1mm

DC Resistance (DCR) :

50mOhm Max

Max DC Current :

2.65A

DC Current :

2.65A

RoHS Status :

ROHS3 Compliant

Packaging :

Tape and Reel (TR)

Mounting Type :

Surface Mount

Published :

2010

JESD-609 Code :

e2

Current Rating :

2.65A

Shape/Size Description :

CYLINDRICAL PACKAGE

Radiation Hardening :

No

Size / Dimension :

0.496Lx0.457W 12.60mmx11.60mm

Test Frequency :

2.52MHz
