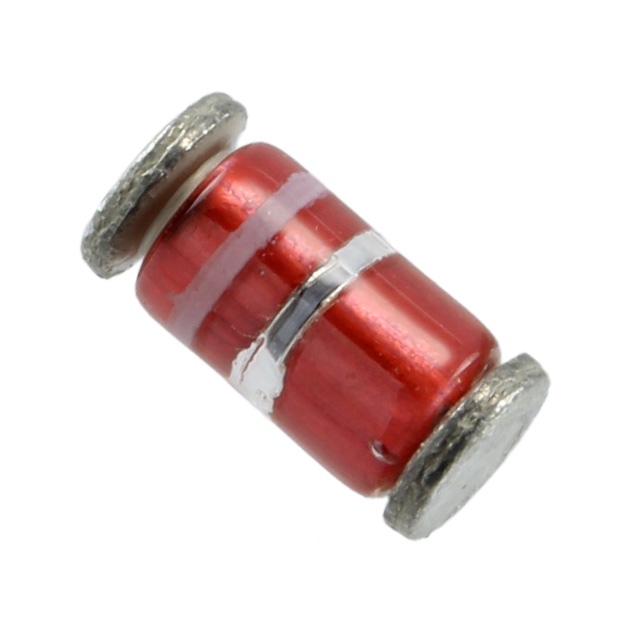

CDLL3018A
Or copy the link below:
- Mfr.Part #
- CDLL3018A
- Manufacturer
- Microchip Technology
- Package / Case
- DO-213AB, MELF
- Datasheet
- Download
- Description
- DIODE ZENER 8.2V 1W DO213AB
- Stock
- 15,405
- In Stock ：
- 15,405
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Microchip Technology
- Product Category :
- Diodes - Zener - Single
- Max Reverse Leakage Current :
- 5μA
- Voltage Tol-Max :
- 10%
- Voltage - Forward (Vf) (Max) @ If :
- 1.2V @ 200mA
- Lifecycle Status :
- IN PRODUCTION (Last Updated: 4 weeks ago)
- RoHS Status :
- Non-RoHS Compliant
- Number of Terminations :
- 2
- JESD-30 Code :
- O-LELF-R2
- Impedance :
- 4.5Ohm
- Diode Element Material :
- SILICON
- Impedance-Max :
- 4.5Ohm
- HTS Code :
- 8541.10.00.50
- Polarity :
- Unidirectional
- Tolerance :
- ±10%
- Packaging :
- Bulk
- Case Connection :
- Isolated
- Diode Type :
- ZENER DIODE
- Working Test Current :
- 31mA
- ECCN Code :
- EAR99
- Mounting Type :
- Surface Mount
- Terminal Form :
- WRAP AROUND
- Package / Case :
- DO-213AB, MELF
- Radiation Hardening :
- No
- Operating Temperature :
- -55°C~175°C
- Number of Elements :
- 1
- Terminal Position :
- END
- Mount :
- Surface Mount
- Factory Lead Time :
- 17 Weeks
- Max Power Dissipation :
- 1W
- Additional Feature :
- METALLURGICALLY BONDED
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current - Reverse Leakage @ Vr :
- 5μA @ 6.2V
- Element Configuration :
- Single
- Zener Voltage :
- 8.2V
- Reference Voltage :
- 8.2V
- Datasheets
- CDLL3018A
ZENER DIODE 4.5Ohm ±10% 8.2V 5μA @ 6.2V -55°C~175°C 1W 2 Terminations DO-213AB, MELF
CDLL3018A Overview
A reverse leakage current of 5μA @ 6.2V is required to supply this electrical device.Voltage (Tol) is limited to 10%.5μA is the maximum reverse leakage current.To operate this device, set the working test voltage to 31mA.1.2V @ 200mA is reached when the maximum voltage - Forward (Vf) is supplied for its operation.
CDLL3018A Features
reverse leakage current of 5μA @ 6.2V
5μA @ 6.2V is the maximum voltage (Tol)
Reverse leakage current reaches 5μA
the working test voltage to 31mA
minimal dynamic impedance is 31mA
CDLL3018A Applications
There are a lot of Microsemi Corporation
CDLL3018A applications of zener single diodes.
