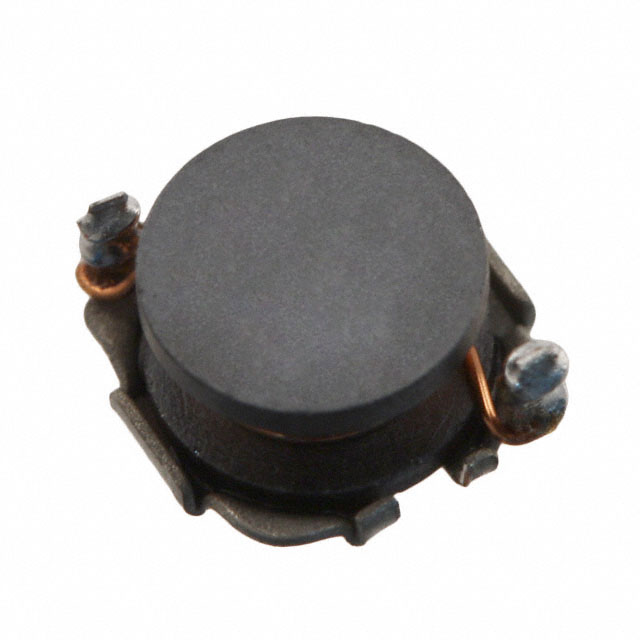

CDH53NP-330KC

Manufacturer :

Sumida Corporation

Product Category :

Fixed Inductors

Height :

3.2mm

ECCN Code :

EAR99

Packaging :

Tape and Reel (TR)

Radiation Hardening :

No

Current Rating :

670mA

Test Frequency :

1kHz

Size / Dimension :

0.236Lx0.205W 6.00mmx5.20mm

HTS Code :

8504.50.80.00

Depth :

5.4mm

Tolerance :

±10%

Series :

CDH53

Mounting Type :

Surface Mount

Inductance :

33μH

Max DC Current :

670mA

Type :

Wirewound

Material - Core :

Ferrite

Case/Size Code :

2024

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lead Free :

Lead Free

Mount :

Surface Mount

Inductor Application :

POWER INDUCTOR

RoHS Status :

ROHS3 Compliant

Terminal Placement :

DUAL ENDED

Pbfree Code :

yes

Number of Terminations :

2

Factory Lead Time :

28 Weeks

Shape/Size Description :

RECTANGULAR PACKAGE

Shielding :

No

DC Resistance (DCR) :

490mOhm Max

Terminal Shape :

WRAPAROUND

Number of Functions :

1

Operating Temperature :

-40°C~100°C

Height Seated (Max) :

0.126 3.20mm

Package / Case :

Nonstandard

Published :

2012
