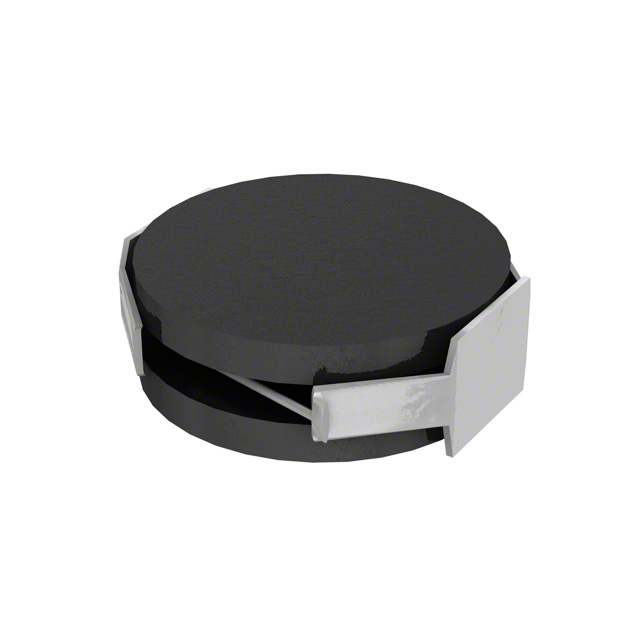

CDH2D09BNP-4R7MC

Manufacturer :

Sumida Corporation

Product Category :

Fixed Inductors

Package / Case :

Nonstandard

Shielding :

No

Terminal Shape :

ONE SURFACE

DC Resistance (DCR) :

273mOhm Max

ECCN Code :

EAR99

HTS Code :

8504.50.80.00

Inductor Application :

POWER INDUCTOR

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal Placement :

DUAL ENDED

Pbfree Code :

yes

Series :

CDH2D09B

Material - Core :

Ferrite

RoHS Status :

ROHS3 Compliant

Mounting Type :

Surface Mount

Size / Dimension :

0.112Lx0.106W 2.85mmx2.70mm

Termination :

SMD/SMT

Packaging :

Tape and Reel (TR)

Inductance :

4.7μH

Test Frequency :

100kHz

Shape/Size Description :

RECTANGULAR PACKAGE

Depth :

2.8mm

Inductor Type :

GENERAL PURPOSE INDUCTOR

Number of Functions :

1

Lead Free :

Lead Free

Radiation Hardening :

No

Tolerance :

±20%

Current Rating :

850mA

Operating Temperature :

-40°C~105°C

Number of Terminations :

2

Height Seated (Max) :

0.039 1.00mm

Max DC Current :

850mA

Published :

2012

Mount :

Surface Mount

Weight :

22.991463mg

Height :

1mm

Case/Size Code :

1111

Current - Saturation :

700mA
