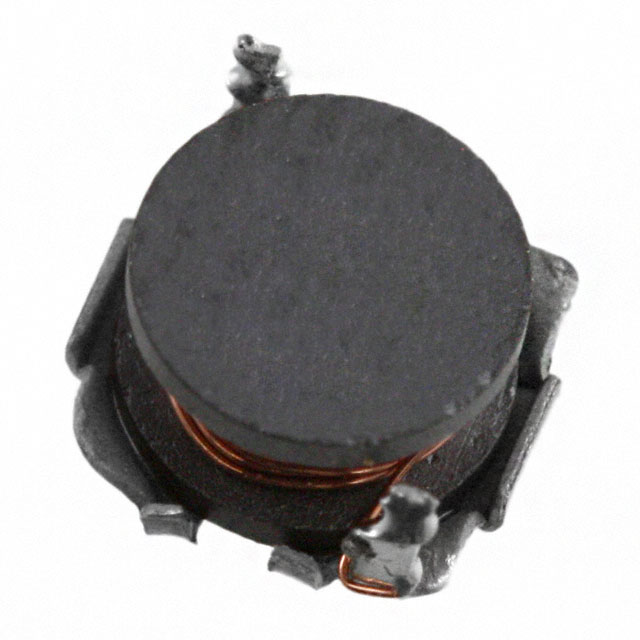

CDH115NP-101KC

Manufacturer :

Sumida Corporation

Product Category :

Fixed Inductors

Tolerance :

±10%

Current Rating :

960mA

Max DC Current :

960mA

Mounting Type :

Surface Mount

Terminal Shape :

WRAPAROUND

Series :

CDH115

Mount :

Surface Mount

Number of Terminations :

2

Test Frequency :

1kHz

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Size / Dimension :

0.441Lx0.433W 11.20mmx11.00mm

Case/Size Code :

4343

Operating Temperature :

-40°C~100°C

Height Seated (Max) :

0.205 5.20mm

Terminal Placement :

DUAL ENDED

Package / Case :

Nonstandard

Material - Core :

Ferrite

Inductor Application :

POWER INDUCTOR

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

14 Weeks

Shielding :

No

Reference Standard :

AEC-Q200

DC Resistance (DCR) :

260mOhm Max

Published :

2006

Shape/Size Description :

RECTANGULAR PACKAGE

Inductance :

100μH

Packaging :

Tape and Reel (TR)

Height :

5.2mm

Type :

Wirewound

Reach Compliance Code :

Unknown

Pbfree Code :

yes

Number of Functions :

1
