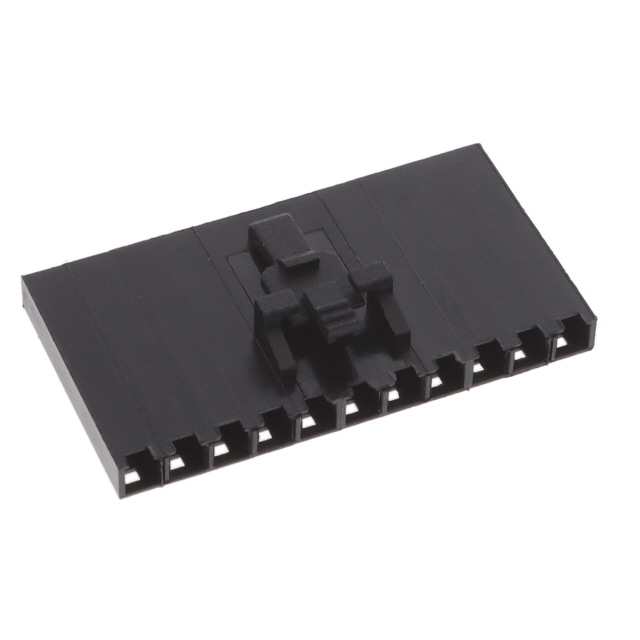

CDH-11

Manufacturer :

Adam Tech

Product Category :

Rectangular Connector Housings

Reference Standard :

AEC-Q200

Factory Lead Time :

14 Weeks

DC Resistance (DCR) :

70mOhm Max

Test Frequency :

1kHz

Max DC Current :

1.84A

Height :

5.2mm

Mount :

Surface Mount

Inductor Application :

POWER INDUCTOR

RoHS Status :

ROHS3 Compliant

Mounting Type :

Surface Mount

Packaging :

Tape and Reel (TR)

Reach Compliance Code :

Unknown

Series :

CDH115

Terminal Shape :

WRAPAROUND

Material - Core :

Ferrite

Type :

Wirewound

Shielding :

No

Size / Dimension :

0.441Lx0.433W 11.20mmx11.00mm

Shape/Size Description :

RECTANGULAR PACKAGE

Operating Temperature :

-40°C~100°C

Tolerance :

±15%

Published :

2006

Height Seated (Max) :

0.205 5.20mm

Terminal Placement :

DUAL ENDED

Inductance :

27μH

Package / Case :

Nonstandard

Current Rating :

1.84A

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Case/Size Code :

4343

Number of Terminations :

2

Number of Functions :

1
