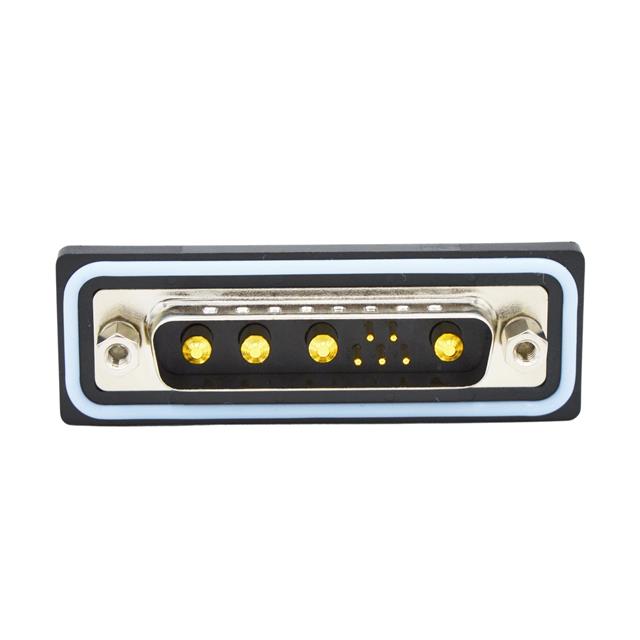

CDFV9W4113L252
Or copy the link below:
- Mfr.Part #
- CDFV9W4113L252
- Manufacturer
- NorComp
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG 9P PNL MNT SLDR
- Stock
- 18,335
- In Stock ：
- 18,335
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NorComp
- Product Category :
- D-Sub Connector Assemblies
- Contact Finish Thickness :
- 30.0µin (0.76µm)
- Gender :
- Male
- Contact Plating :
- Gold
- Mounting Angle :
- Straight
- Features :
- Board Lock, Grounding Indents
- Shell Plating :
- Nickel
- Product Status :
- Active
- Filter Type :
- -
- Shell Size, Connector Layout :
- 3 (DB, B) - 9W4
- Series :
- CDFV
- Maximum Operating Temperature :
- + 85 C
- RoHS :
- Details
- Material Flammability Rating :
- UL94 V-0
- Termination Style :
- Solder Pin
- Base Product Number :
- CDFV9W4
- Connector Type :
- Plug, Male Pins
- Contact Material :
- COPPER ALLOY
- Insulation :
- Insulated
- Tradename :
- NANOOK
- Current Rating (Amps) :
- -
- Minimum Operating Temperature :
- - 25 C
- Packaging :
- Tray
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- Mounting Style :
- Panel
- Connector Style :
- D-Sub, Combo
- Color :
- -
- Contact Finish :
- Gold
- Contact Form :
- Machined
- Voltage Rating :
- -
- Ingress Protection :
- IP67 - Dust Tight, Waterproof
- Contact Type :
- Signal and Power
- Package :
- Tray
- Wire Gauge :
- -
- Operating Temperature :
- -25°C ~ 85°C
- Backset Spacing :
- -
- Number of Positions :
- 9 Position
- Flange Feature :
- Mating Side, Female Screwlock (4-40)
- Termination :
- Solder
- Dielectric Material :
- Polybutylene Terephthalate (PBT)
- Shell Material, Finish :
- Steel, Nickel Plated
- Contact Arrangement :
- 9W4
- Shell Material :
- Steel
- Mounting Type :
- Panel Mount, Through Hole
- Number of Rows :
- 2
- Datasheets
- CDFV9W4113L252
CDFV9W4113L252 Documents
CDFV Series D-Sub, Combo Plug, Male Pins 9 Position-Position Male Signal and Power Solder 3 (DB, B) - 9W4 Panel Mount, Through Hole Copper Alloy Gold Steel, Nickel Plated
CDFV9W4113L252 Overview
The product comes in a package of Plug, Male Pins.This device's mounting type is Panel Mount, Through Hole.It's packaged in a Tray case.CDFV Series product.Running in -25°C ~ 85°C Operating Temperature.
CDFV9W4113L252 Features
CDFV series
CDFV9W4113L252 Applications
There are a lot of NorComp
CDFV9W4113L252 D-Sub Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
