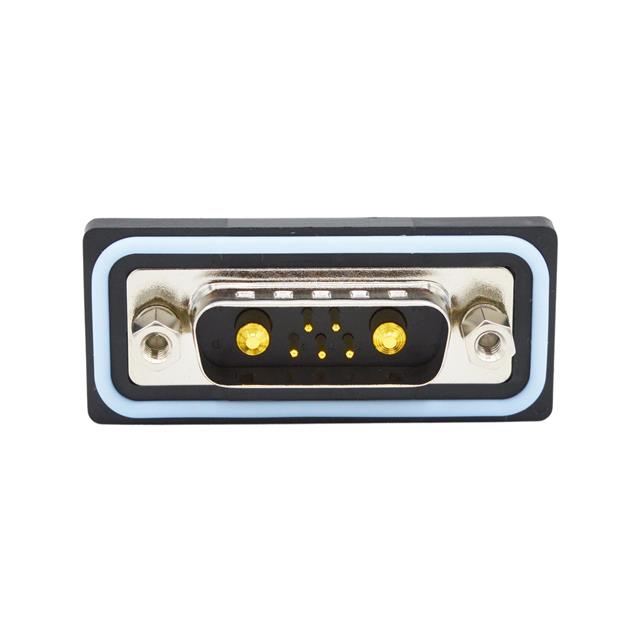

CDFV7W2113L211
Or copy the link below:
- Mfr.Part #
- CDFV7W2113L211
- Manufacturer
- NorComp
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG 7P PNL MNT SLDR
- Stock
- 49
- In Stock ：
- 49
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NorComp
- Product Category :
- D-Sub Connector Assemblies
- RoHS :
- Details
- Contact Form :
- Machined
- Filter Type :
- -
- Gender :
- Male
- Minimum Operating Temperature :
- - 25 C
- Flange Feature :
- Mating Side, Female Screwlock (4-40)
- Number of Positions :
- 7 Position
- Contact Material :
- COPPER ALLOY
- Number of Rows :
- 2
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- Contact Arrangement :
- 7W2
- Number of Contacts :
- 7
- Maximum Operating Temperature :
- + 85 C
- Insulation :
- Insulated
- Contact Plating :
- Gold
- Base Product Number :
- CDFV7W2
- Dielectric Material :
- Polybutylene Terephthalate (PBT)
- Tradename :
- NANOOK
- Wire Gauge :
- -
- Termination Style :
- Solder Pin
- Current Rating (Amps) :
- 5A, 20A
- Package :
- Tray
- Shell Material :
- Steel
- Mounting Angle :
- Straight
- Ingress Protection :
- IP67 - Dust Tight, Waterproof
- Shell Size, Connector Layout :
- 2 (DA, A) - 7W2
- Contact Type :
- 5 Signal, 2 Power
- Body Orientation :
- Vertical
- Color :
- Black
- Series :
- CDFV
- Operating Temperature :
- -25°C ~ 85°C
- Connector Style :
- D-Sub, Combo
- Features :
- Grounding Indents
- Termination :
- Solder
- Material Flammability Rating :
- UL94 V-0
- Voltage Rating :
- -
- Product Status :
- Active
- Contact Finish Thickness :
- Flash
- Contact Finish :
- Gold
- Packaging :
- Tray
- Backset Spacing :
- -
- Mounting Hardware :
- 4-40 Screw Locks
- Pitch :
- 2.77mm
- Shell Material, Finish :
- Steel, Nickel Plated
- Connector Type :
- Plug, Male Pins
- Mounting Style :
- Panel
- Shell Plating :
- Nickel
- Mounting Type :
- PCB Mount
- Datasheets
- CDFV7W2113L211
CDFV7W2113L211 Documents
CDFV Series D-Sub, Combo Plug, Male Pins 7 Position-Position Male 5 Signal, 2 Power Solder 2 (DA, A) - 7W2 PCB Mount Copper Alloy Gold Steel, Nickel Plated
CDFV7W2113L211 Overview
A Plug, Male Pins package is included with it.PCB Mount indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the CDFV Series.Operating temperature is set to -25°C ~ 85°C.
CDFV7W2113L211 Features
CDFV series
CDFV7W2113L211 Applications
There are a lot of NorComp
CDFV7W2113L211 D-Sub Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
