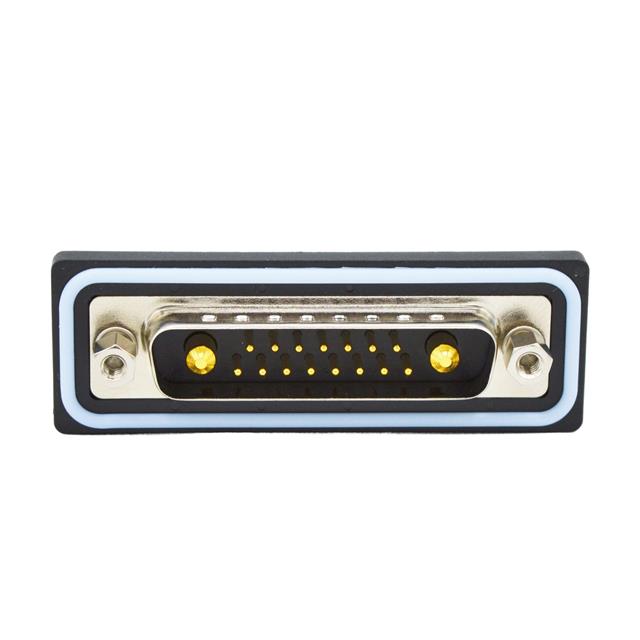

CDFV17W2113L211
Or copy the link below:
- Mfr.Part #
- CDFV17W2113L211
- Manufacturer
- NorComp
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG 17P PNL MNT SLDR
- Stock
- 35
- In Stock ：
- 35
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NorComp
- Product Category :
- D-Sub Connector Assemblies
- Material Flammability Rating :
- UL94 V-0
- Shell Size, Connector Layout :
- 3 (DB, B) - 17W2
- RoHS :
- Details
- Voltage Rating :
- -
- Pitch :
- 2.77mm
- Dielectric Material :
- Polybutylene Terephthalate (PBT)
- Connector Style :
- D-Sub, Combo
- Contact Finish Thickness :
- Flash
- Number of Positions :
- 17 Position
- Mounting Hardware :
- 4-40 Screw Locks
- Connector Type :
- Plug, Male Pins
- Packaging :
- Tray
- Gender :
- Male
- Color :
- -
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- Body Orientation :
- Vertical
- Mounting Type :
- PCB Mount
- Mounting Style :
- Panel
- Insulation :
- Insulated
- Product Status :
- Active
- Package :
- Tray
- Contact Plating :
- Gold
- Filter Type :
- -
- Current Rating (Amps) :
- -
- Contact Finish :
- Gold
- Base Product Number :
- CDFV17W
- Number of Contacts :
- 25
- Minimum Operating Temperature :
- - 25 C
- Operating Temperature :
- -25°C ~ 85°C
- Termination :
- Solder
- Shell Material :
- Steel
- Maximum Operating Temperature :
- + 85 C
- Wire Gauge :
- -
- Contact Form :
- Machined
- Shell Plating :
- Nickel
- Contact Type :
- 15 Signal, 2 Power
- Backset Spacing :
- -
- Ingress Protection :
- IP67 - Dust Tight, Waterproof
- Shell Material, Finish :
- Steel, Nickel Plated
- Series :
- CDFV
- Flange Feature :
- Mating Side, Female Screwlock (4-40)
- Contact Material :
- COPPER ALLOY
- Contact Arrangement :
- 17W2
- Mounting Angle :
- Straight
- Tradename :
- NANOOK
- Features :
- Grounding Indents
- Number of Rows :
- 2
- Termination Style :
- Solder Pin
- Datasheets
- CDFV17W2113L211
CDFV17W2113L211 Documents
CDFV Series D-Sub, Combo Plug, Male Pins 17 Position-Position Male 15 Signal, 2 Power Solder 3 (DB, B) - 17W2 PCB Mount Copper Alloy Gold Steel, Nickel Plated
CDFV17W2113L211 Overview
The product is packaged in Plug, Male Pins.PCB Mount is the mounting type.Packaging for the product is carried out via a Tray case.As a product of the CDFV Series, it can be found in this category.The device is operating at -25°C ~ 85°C Operating Temperature.
CDFV17W2113L211 Features
CDFV series
CDFV17W2113L211 Applications
There are a lot of NorComp
CDFV17W2113L211 D-Sub Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
