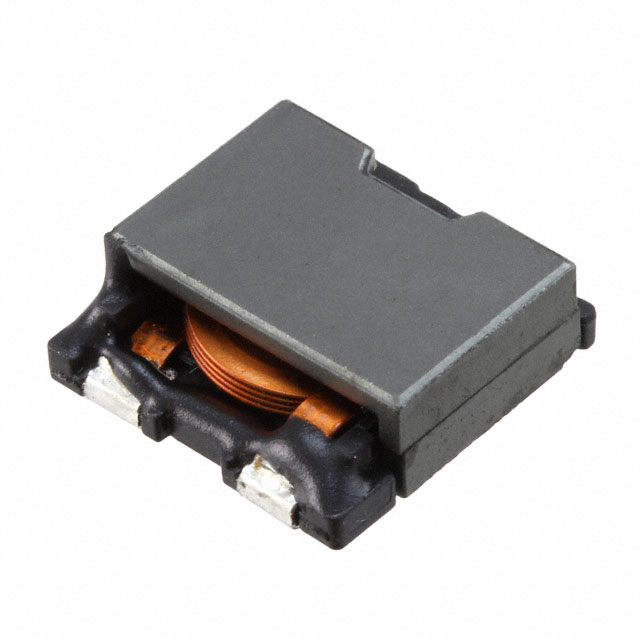

CDEP134NP-8R0MC

Manufacturer :

Sumida Corporation

Product Category :

Fixed Inductors

HTS Code :

8504.50.80.00

Case/Size Code :

5353

Type :

Wirewound

Package / Case :

Nonstandard

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Size / Dimension :

0.531Lx0.531W 13.50mmx13.50mm

Inductance :

8μH

Series :

CDEP134

Max DC Current :

6.5A

Mounting Type :

Surface Mount

Test Frequency :

100kHz

Shape/Size Description :

RECTANGULAR PACKAGE

Height :

4.9mm

Current Rating :

6.5A

Inductor Application :

POWER INDUCTOR

Reach Compliance Code :

Unknown

Number of Functions :

1

Material - Core :

Ferrite

Published :

2006

Height Seated (Max) :

0.193 4.90mm

Number of Terminations :

3

Packing Method :

TR

Terminal Shape :

WRAPAROUND

Shielding :

yes

Mount :

Surface Mount

Factory Lead Time :

15 Weeks

ECCN Code :

EAR99

Packaging :

Tape and Reel (TR)

Pbfree Code :

yes

Lead Free :

Lead Free

Operating Temperature :

-40°C~125°C

DC Resistance (DCR) :

18.4mOhm Max

RoHS Status :

ROHS3 Compliant

Current - Saturation :

7.2A

Tolerance :

±20%

Termination :

SMD/SMT
