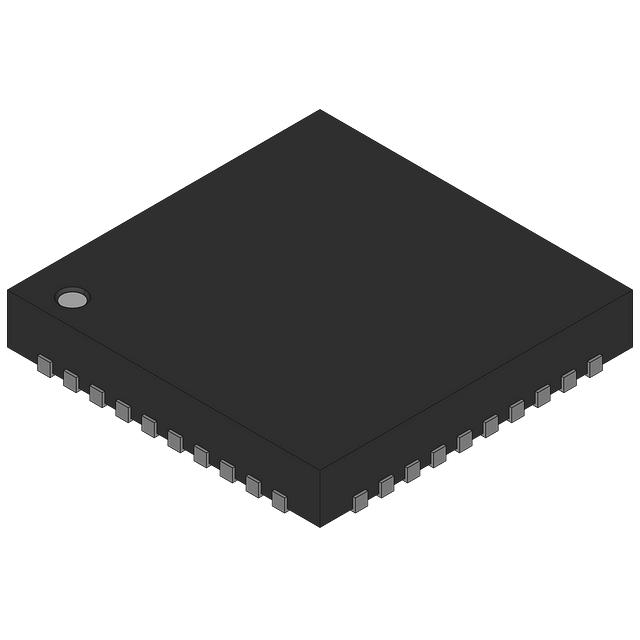

CDCVF857RHAT

Manufacturer :

Texas Instruments

Product Category :

Clock Generators, PLLs, Frequency Synthesizers

Family :

857

Factory Lead Time :

6 Weeks

Voltage - Supply :

2.3V~2.7V

Pbfree Code :

yes

JESD-609 Code :

e4

PLL :

Yes with Bypass

Supply Voltage :

2.5V

Width :

6mm

Differential - Input:Output :

Yes/Yes

Lifecycle Status :

ACTIVE (Last Updated: 6 days ago)

Supply Voltage-Min (Vsup) :

2.3V

Number of Functions :

1

Radiation Hardening :

No

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Ratio - Input:Output :

2:11

Weight :

103.986051mg

Number of Circuits :

1

Propagation Delay (tpd) :

3.5 ns

Number of Pins :

40

Operating Supply Current :

6mA

Base Part Number :

CDCVF857

Operating Temperature :

-40°C~85°C

Terminal Pitch :

0.5mm

Mount :

Surface Mount

Packaging :

Tape and Reel (TR)

Frequency :

220MHz

Contact Plating :

Gold

Number of Outputs :

10

Number of Terminations :

40

ECCN Code :

EAR99

Pin Count :

40

Supply Voltage-Max (Vsup) :

2.7V

Packing Method :

TR

Package / Case :

40-VFQFN Exposed Pad

Type :

PLL Clock Driver

Terminal Position :

QUAD

Peak Reflow Temperature (Cel) :

260

Nominal Supply Current :

10mA

Max Supply Current :

10mA

Lead Free :

Lead Free

Mounting Type :

Surface Mount

Thickness :

900μm

Height :

1mm

Same Edge Skew-Max (tskwd) :

0.04 ns

Input :

SSTL-2

Length :

6mm

RoHS Status :

ROHS3 Compliant

Divider/Multiplier :

No/No

Operating Supply Voltage :

2.5V

Output Characteristics :

3-STATE
