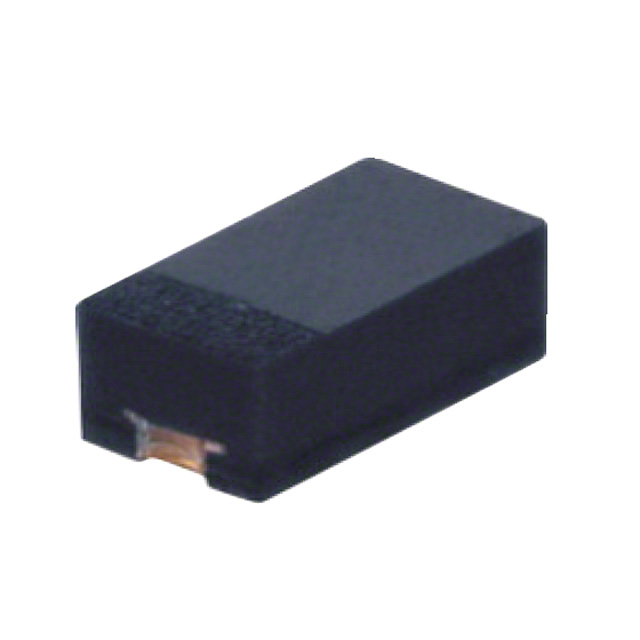

CDBU0130R
Or copy the link below:
- Mfr.Part #
- CDBU0130R
- Manufacturer
- Comchip Technology
- Package / Case
- 2-SMD, No Lead
- Datasheet
- Download
- Description
- DIODE SCHOTTKY 30V 100MA 0603
- Stock
- 230,400
- In Stock ：
- 230,400
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Comchip Technology
- Product Category :
- Diodes - Rectifiers - Single
- Factory Lead Time :
- 8 Weeks
- Mounting Type :
- Surface Mount
- HTS Code :
- 8541.10.00.70
- Operating Temperature (Max) :
- 125°C
- RoHS Status :
- ROHS3 Compliant
- Package / Case :
- 2-SMD, No Lead
- Operating Temperature - Junction :
- 125°C Max
- Speed :
- Small Signal =< 200mA (Io), Any Speed
- Max Reverse Leakage Current :
- 500nA
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Forward (Vf) (Max) @ If :
- 450mV @ 10mA
- Mount :
- Surface Mount
- Packaging :
- Tape and Reel (TR)
- Number of Elements :
- 1
- Non-rep Pk Forward Current-Max :
- 1A
- Max Surge Current :
- 1A
- Diode Type :
- Schottky
- Published :
- 2011
- Average Rectified Current :
- 100mA
- Current - Reverse Leakage @ Vr :
- 500nA @ 10V
- Max Reverse Voltage (DC) :
- 30V
- ECCN Code :
- EAR99
- Base Part Number :
- CDBU0130
- Configuration :
- Single
- Datasheets
- CDBU0130R
CDBU0130R Documents
Schottky Diode Rectifier Small Signal =< 200mA (Io), Any Speed 450mV @ 10mA 125°C Max 500nA @ 10V Tape & Reel (TR) 2-SMD, No Lead Surface Mount
CDBU0130R Overview
500nA volts is the maximum reverse leakage current of this device.In this device, there is an average rectified current of 100mA volts.This is the maximum amount of 1A surge current that can be used.
CDBU0130R Features
a maximal reverse leakage current of 500nA volts
an average rectified current of 100mA volts
CDBU0130R Applications
There are a lot of Comchip Technology
CDBU0130R applications of single-phase diode rectifier.
- DC motor control and drives
- Battery chargers
- Welders
- Power converters
- Reverse Polarity Protection
- Ultra High-Speed Switching
- Freewheeling
- Polarity Protection Diode
- Recirculating Diode
- Switching Diode
