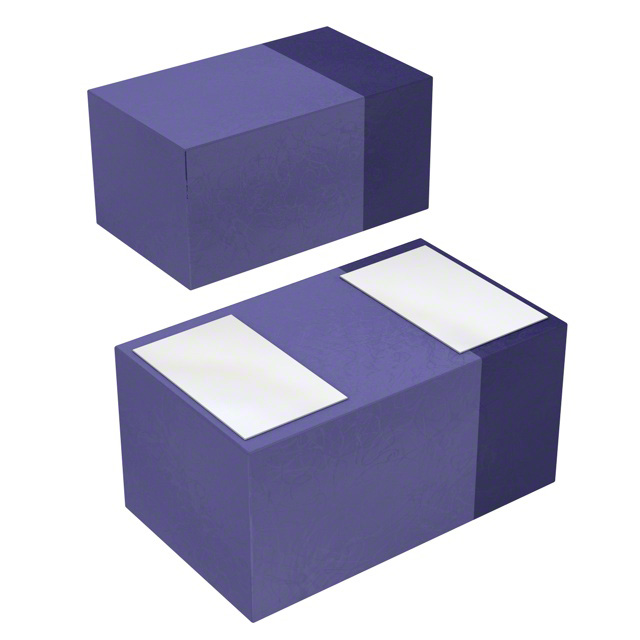

CDBQR43
Or copy the link below:
- Mfr.Part #
- CDBQR43
- Manufacturer
- Comchip Technology
- Package / Case
- 0402 (1005 Metric)
- Datasheet
- Download
- Description
- DIODE SCHOTTKY 30V 200MA 0402
- Stock
- 10,609
- In Stock ：
- 10,609
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Comchip Technology
- Product Category :
- Diodes - Rectifiers - Single
- Operating Temperature (Max) :
- 125°C
- Mount :
- Surface Mount
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Configuration :
- Single
- Max Surge Current :
- 4A
- Voltage - Forward (Vf) (Max) @ If :
- 1V @ 200mA
- Published :
- 2011
- Output Current-Max :
- 0.2A
- Average Rectified Current :
- 200mA
- Case Code (Imperial) :
- 0402
- Current - Reverse Leakage @ Vr :
- 500nA @ 25V
- Case Code (Metric) :
- 1005
- Base Part Number :
- CDBQR43
- Recovery Time :
- 5 ns
- Speed :
- Small Signal =< 200mA (Io), Any Speed
- Non-rep Pk Forward Current-Max :
- 4A
- Mounting Type :
- Surface Mount
- Max Reverse Leakage Current :
- 500nA
- HTS Code :
- 8541.10.00.70
- Factory Lead Time :
- 8 Weeks
- Reverse Recovery Time :
- 5 ns
- Package / Case :
- 0402 (1005 Metric)
- Capacitance @ Vr, F :
- 10pF @ 1V 1MHz
- Number of Elements :
- 1
- Packaging :
- Tape and Reel (TR)
- Max Reverse Voltage (DC) :
- 30V
- RoHS Status :
- ROHS3 Compliant
- Diode Type :
- Schottky
- Operating Temperature - Junction :
- 125°C Max
- Max Power Dissipation :
- 125mW
- ECCN Code :
- EAR99
- Datasheets
- CDBQR43
Schottky Diode Rectifier Small Signal =< 200mA (Io), Any Speed 1V @ 200mA 125°C Max 500nA @ 25V Tape & Reel (TR) 0402 (1005 Metric) Surface Mount
CDBQR43 Overview
Reverse leakage current is maximally zero volts with this device.This device's average rectified current is zero volts.There is no 125mW heat loss (energy loss) from electronic or electrical devices.Surge currents are limited to 4A.In terms of output current, the maximum value is 0.2A.
CDBQR43 Features
a maximal reverse leakage current of 500nA volts
an average rectified current of 200mA volts
the least amount of 125mW heat (energy loss)
0.2A is the maximum value
CDBQR43 Applications
There are a lot of Comchip Technology
CDBQR43 applications of single-phase diode rectifier.
- DC motor control and drives
- Battery chargers
- Welders
- Power converters
- Reverse Polarity Protection
- Ultra High-Speed Switching
- Freewheeling
- Polarity Protection Diode
- Recirculating Diode
- Switching Diode
