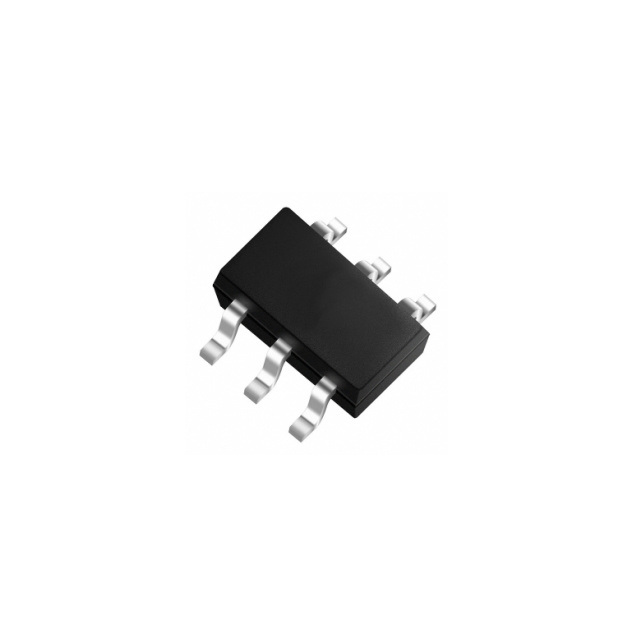

CDBH3-54-HF

Manufacturer :

Comchip Technology

Product Category :

Diodes - Rectifiers - Arrays

Reverse Recovery Time-Max :

0.005 μs

Terminal Position :

Dual

Surface Mount :

yes

Number of Terminals :

3

Package Shape :

RECTANGULAR

Output Current-Max :

0.2 A

Reverse Recovery Time (trr) :

5 ns

Operating Temperature - Junction :

125°C (Max)

Mounting Type :

Surface Mount

Package / Case :

SOT-523

Series :

-

JESD-30 Code :

R-PDSO-G3

Package :

Tape and Reel (TR)

Number of Elements :

1

Diode Element Material :

SILICON

Base Product Number :

CDBH3-54

Configuration :

Single

Current - Reverse Leakage @ Vr :

2 µA @ 25 V

Speed :

Small Signal =< 200mA (Io), Any Speed

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Supplier Device Package :

SOT-523

Rep Pk Reverse Voltage-Max :

30 V

Reach Compliance Code :

Compliant

Voltage - Forward (Vf) (Max) @ If :

1 V @ 100 mA

Product Status :

Obsolete

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Power Dissipation-Max :

0.15 W

Voltage - DC Reverse (Vr) (Max) :

30 V

Terminal Form :

Gull wing

Diode Type :

RECTIFIER DIODE
