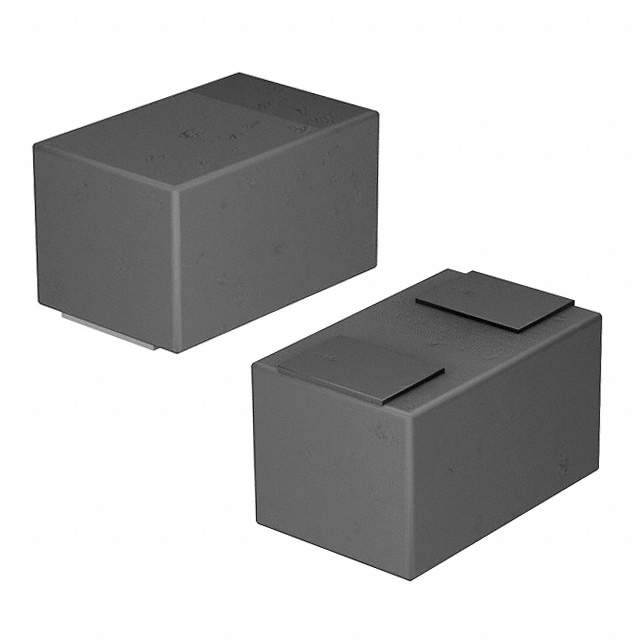

CDBER0140R
Or copy the link below:
- Mfr.Part #
- CDBER0140R
- Manufacturer
- Comchip Technology
- Package / Case
- 0503 (1308 Metric)
- Datasheet
- Download
- Description
- DIODE SCHOTTKY 40V 100MA 0503
- Stock
- 47,395
- In Stock ：
- 47,395
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Comchip Technology
- Product Category :
- Diodes - Rectifiers - Single
- Operating Temperature - Junction :
- 125°C Max
- RoHS Status :
- ROHS3 Compliant
- Case Code (Metric) :
- 1308
- Package / Case :
- 0503 (1308 Metric)
- Base Part Number :
- CDBER0140
- Packaging :
- Tape and Reel (TR)
- Max Reverse Voltage (DC) :
- 40V
- Published :
- 2011
- Factory Lead Time :
- 8 Weeks
- ECCN Code :
- EAR99
- Average Rectified Current :
- 100mA
- Current - Reverse Leakage @ Vr :
- 1μA @ 10V
- Max Surge Current :
- 1A
- Case Code (Imperial) :
- 0503
- Diode Type :
- Schottky
- Mounting Type :
- Surface Mount
- Mount :
- Surface Mount
- Max Reverse Leakage Current :
- 1μA
- Capacitance @ Vr, F :
- 6pF @ 10V 1MHz
- Speed :
- Small Signal =< 200mA (Io), Any Speed
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Forward (Vf) (Max) @ If :
- 450mV @ 10mA
- Datasheets
- CDBER0140R
CDBER0140R Documents
Schottky Diode Rectifier Small Signal =< 200mA (Io), Any Speed 450mV @ 10mA 125°C Max 1μA @ 10V Tape & Reel (TR) 0503 (1308 Metric) Surface Mount
CDBER0140R Overview
1μA volts is the maximum reverse leakage current of this device.In this device, there is an average rectified current of 100mA volts.This is the maximum amount of 1A surge current that can be used.
CDBER0140R Features
a maximal reverse leakage current of 1μA volts
an average rectified current of 100mA volts
CDBER0140R Applications
There are a lot of Comchip Technology
CDBER0140R applications of single-phase diode rectifier.
- DC motor control and drives
- Battery chargers
- Welders
- Power converters
- Reverse Polarity Protection
- Ultra High-Speed Switching
- Freewheeling
- Polarity Protection Diode
- Recirculating Diode
- Switching Diode
