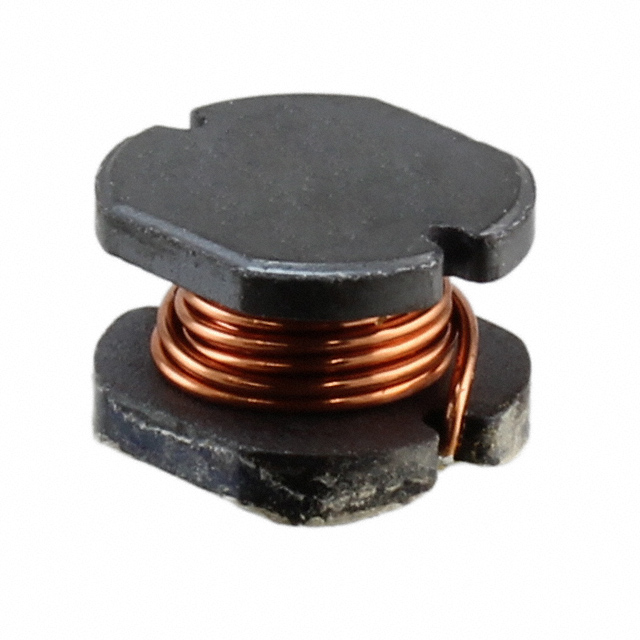

CD75NP-331KC

Manufacturer :

Sumida Corporation

Product Category :

Fixed Inductors

Number of Terminations :

2

Size / Dimension :

0.307Lx0.276W 7.80mmx7.00mm

Inductor Application :

POWER INDUCTOR

DC Resistance (DCR) :

1.26Ohm Max

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Type :

Surface Mount

Terminal Placement :

DUAL ENDED

Packing Method :

TR, 13 INCH

Inductor Type :

GENERAL PURPOSE INDUCTOR

Shape/Size Description :

RECTANGULAR PACKAGE

Current Rating :

400mA

Mount :

Surface Mount

Test Frequency :

1kHz

Package / Case :

Nonstandard

Operating Temperature :

-40°C~100°C

Depth :

7.3mm

ECCN Code :

EAR99

Height :

5.5mm

Pbfree Code :

yes

Published :

2011

Shielding :

No

Height Seated (Max) :

0.217 5.50mm

Number of Functions :

1

Case/Size Code :

3128

Self Resonant Frequency :

4.3MHz

Inductance :

330μH

Material - Core :

Ferrite

HTS Code :

8504.50.80.00

Packaging :

Tape and Reel (TR)

Tolerance :

±10%

Factory Lead Time :

16 Weeks

Max DC Current :

400mA

Series :

CD75

RoHS Status :

ROHS3 Compliant

Radiation Hardening :

No

Terminal Shape :

ONE SURFACE
