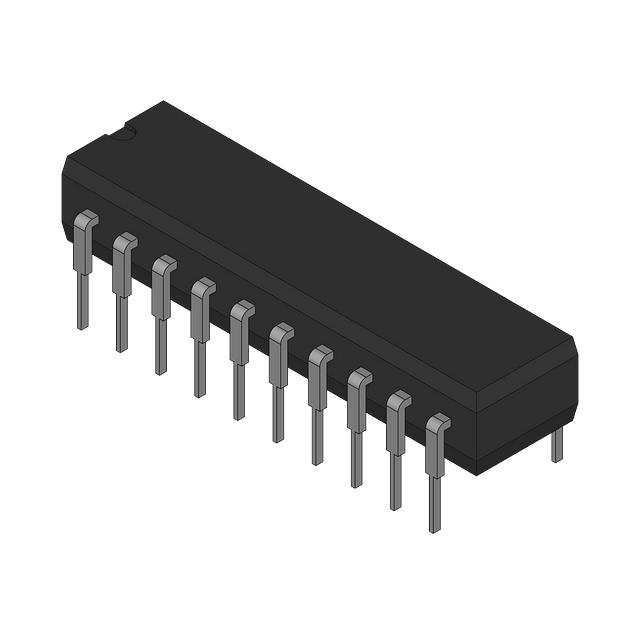

CD74HC640E

Manufacturer :

Texas Instruments

Product Category :

Buffers, Drivers, Receivers, Transceivers

ECCN Code :

EAR99

Additional Feature :

WITH DIRECTION CONTROL

Width :

6.35mm

Thickness :

4.57mm

Current - Output High, Low :

7.8mA 7.8mA

Base Part Number :

74HC640

Pin Count :

20

Height :

5.08mm

Packaging :

Tube

Series :

74HC

Quiescent Current :

8μA

RoHS Status :

ROHS3 Compliant

Power Supplies :

2/6V

Propagation Delay :

90 ns

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Turn On Delay Time :

225 ns

Number of Bits :

8

Number of Ports :

2

Operating Temperature :

-55°C~125°C TA

Radiation Hardening :

No

Supply Voltage-Max (Vsup) :

6V

Control Type :

COMMON CONTROL

Number of Terminations :

20

Lead Free :

Lead Free

Voltage - Supply :

2V~6V

Lifecycle Status :

ACTIVE (Last Updated: 1 day ago)

Family :

HC/UH

Polarity :

Inverting

Supply Voltage :

4.5V

Terminal Position :

Dual

Pbfree Code :

yes

REACH SVHC :

No SVHC

Contact Plating :

Gold

Load Capacitance :

50pF

Direction :

Bidirectional

JESD-609 Code :

e4

Number of Pins :

20

Logic Type :

Transceiver, Inverting

Length :

24.33mm

Weight :

1.1991g

Mount :

Through Hole

Number of Elements :

1

Schmitt Trigger :

No

Terminal Pitch :

2.54mm

Logic Function :

Inverting, Transceiver

Factory Lead Time :

6 Weeks

Number of Functions :

1

Translation :

n/a

Mounting Type :

Through Hole

Package / Case :

20-DIP (0.300, 7.62mm)

Number of Channels :

8

Supply Voltage-Min (Vsup) :

2V

Output Type :

3-STATE

Termination :

Through Hole
