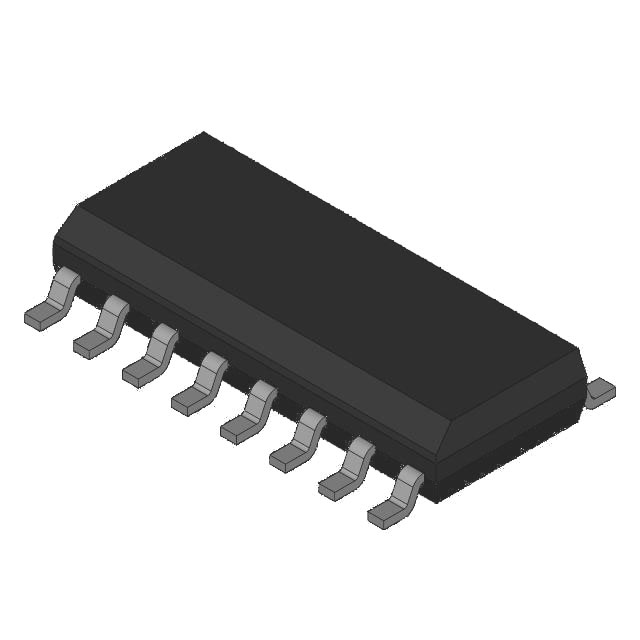

CD74HC258M

Manufacturer :

Harris Corporation

Product Category :

Signal Switches, Multiplexers, Decoders

Surface Mount :

yes

Independent Circuits :

1

Number of Inputs :

2

Series :

74HC

Circuit :

4 x 2:1

Output Characteristics :

3-STATE

Terminal Finish :

TIN LEAD

Package / Case :

16-SOIC (0.154, 3.90mm Width)

RoHS Status :

Non-RoHS Compliant

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Number of Outputs :

1

Packaging :

Tube

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Supply Voltage-Max (Vsup) :

6V

Type :

Multiplexer

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Voltage - Supply :

2V~6V

Supply Voltage :

5V

Number of Functions :

4

Terminal Position :

Dual

Number of Terminations :

16

Mounting Type :

Surface Mount

JESD-609 Code :

e0

Family :

HC/UH

Operating Temperature :

-55°C~125°C

Output Polarity :

INVERTED

Pbfree Code :

No

Current - Output High, Low :

7.8mA 7.8mA

Voltage Supply Source :

Single Supply

Supply Voltage-Min (Vsup) :

2V

Qualification Status :

Not Qualified

Terminal Form :

Gull wing
