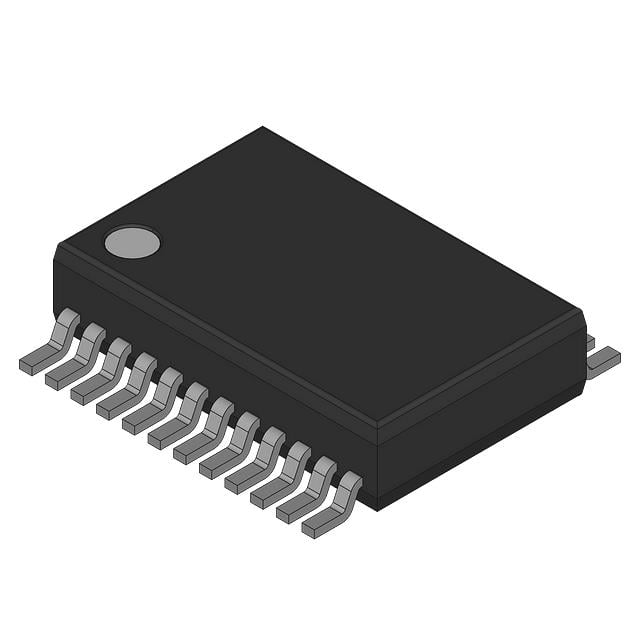

CD74FCT646SM

Manufacturer :

Harris Corporation

Product Category :

Buffers, Drivers, Receivers, Transceivers

Mounting Type :

Surface Mount

Output Characteristics :

3-STATE

Number of Terminals :

24

Surface Mount :

yes

Voltage - Supply :

4.75V ~ 5.25V

Package Shape :

RECTANGULAR

Terminal Form :

Gull wing

Current - Output High, Low :

15mA, 64mA

Logic Type :

Transceiver, Non-Inverting

Package / Case :

24-SSOP (0.209, 5.30mm Width)

Number of Ports :

2

Base Product Number :

74FCT646

Family :

FCT

Qualification Status :

COMMERCIAL

Propagation Delay (tpd) :

9 ns

Input Type :

-

JESD-30 Code :

R-PDSO-G24

Operating Temperature :

0°C ~ 70°C (TA)

Temperature Grade :

COMMERCIAL

Output Polarity :

TRUE

Package :

Bulk

Reach Compliance Code :

Unknown

Number of Bits :

8

Terminal Position :

Dual

Number of Functions :

1

Series :

-

Number of Elements :

1

Supplier Device Package :

24-SSOP

Number of Bits per Element :

8

Supply Voltage-Min (Vsup) :

4.75 V

Additional Feature :

DIRECTION CONTROL; SELECT INPUT FOR MULTIPLEXED TRANSMISSION OF REGISTERED OR REAL TIME DATA

Logic IC Type :

REGISTERED BUS TRANSCEIVER

Product Status :

Active

Supply Voltage-Max (Vsup) :

5.25 V

Output Type :

3-STATE
