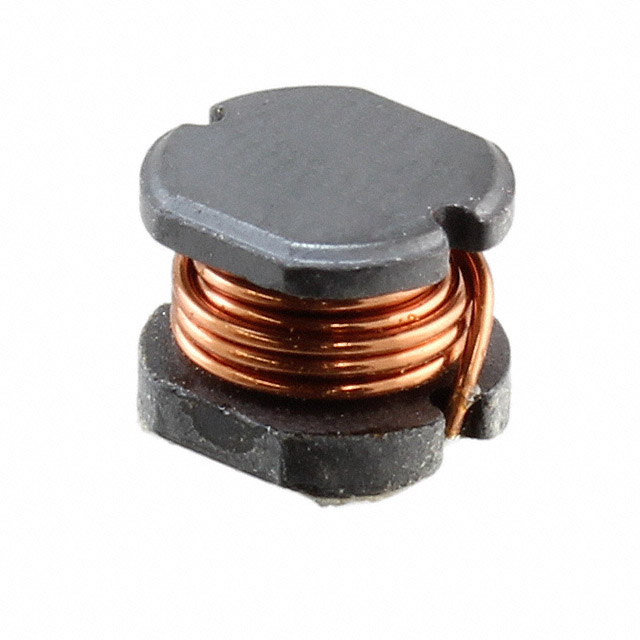

CD54NP-680KC

Manufacturer :

Sumida Corporation

Product Category :

Fixed Inductors

ECCN Code :

EAR99

Height :

4.85mm

Depth :

5.5mm

Mounting Type :

Surface Mount

Terminal Shape :

ONE SURFACE

Packaging :

Tape and Reel (TR)

Test Frequency :

2.52MHz

Published :

2006

Pbfree Code :

yes

Size / Dimension :

0.228Lx0.205W 5.80mmx5.20mm

Material - Core :

Ferrite

Radiation Hardening :

No

Height Seated (Max) :

0.191 4.85mm

DC Resistance (DCR) :

460mOhm Max

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Temperature :

-40°C~100°C

Current Rating :

610mA

Series :

CD54

Weight :

400.011771mg

Package / Case :

Nonstandard

Inductance :

68μH

Tolerance :

±10%

Factory Lead Time :

28 Weeks

Inductor Application :

POWER INDUCTOR

RoHS Status :

ROHS3 Compliant

Number of Functions :

1

Max DC Current :

610mA

Number of Terminations :

2

Packing Method :

TR, 13 INCH

Shielding :

No

Case/Size Code :

2422

Mount :

Surface Mount

Inductor Type :

GENERAL PURPOSE INDUCTOR

HTS Code :

8504.50.80.00

Terminal Placement :

DUAL ENDED

Shape/Size Description :

RECTANGULAR PACKAGE
