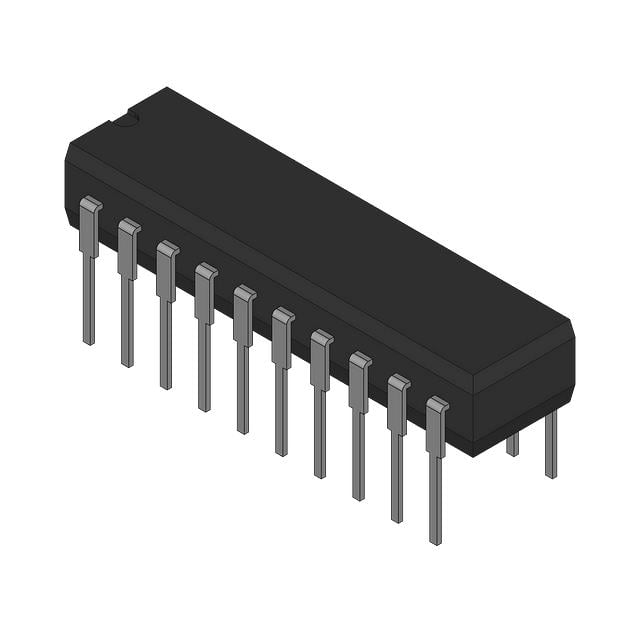

CD54HC573F3A

Manufacturer :

Texas Instruments

Product Category :

Buffers, Drivers, Receivers, Transceivers

Supply Voltage-Max (Vsup) :

6 V

JESD-30 Code :

R-GDIP-T20

Count Direction :

Unidirectional

Pin Count :

20

Qualification Status :

Not Qualified

Brand Name :

Texas

Technology :

CMOS

Package Shape :

RECTANGULAR

Terminal Form :

THROUGH-HOLE

Manufacturer :

Texas

Reach Compliance Code :

not_compliant

Output Polarity :

TRUE

Logic IC Type :

BUS DRIVER

Subcategory :

FF/Latches

Number of Bits :

8

Seated Height-Max :

5.08 mm

Translation :

n/a

Base Product Number :

54HC573

Supply Voltage-Min (Vsup) :

2 V

Number of Functions :

1

Length :

24.2 mm

Number of Terminals :

20

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Product Status :

Active

Surface Mount :

No

Propagation Delay (tpd) :

265 ns

Family :

HC

Temperature Grade :

Military

Number of Ports :

2

Control Type :

ENABLE LOW/HIGH

Power Supply Current-Max (ICC) :

0.16 mA

Package :

Tube

Width :

7.62 mm

Terminal Position :

Dual

Max I(ol) :

0.0078 A

Power Supplies :

2/6 V

Packing Method :

Tube

ECCN Code :

EAR99

Factory Lead Time :

1 Week

Series :

*

Output Characteristics :

3-STATE

HTS Code :

8542.39.00.01

Terminal Pitch :

2.54 mm
