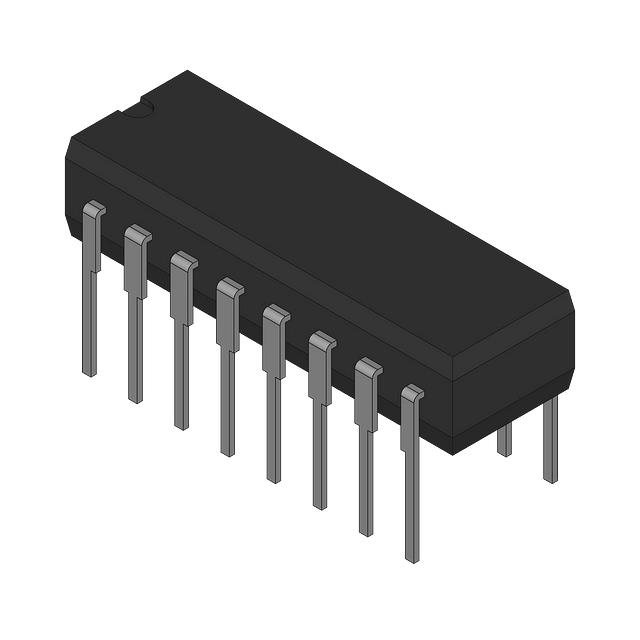

CD54HC4094F3A

Manufacturer :

Texas Instruments

Product Category :

Gates and Inverters

Number of Pins :

16

fmax-Min :

24 MHz

Propagation Delay :

295 ns

Number of Bits :

8

Max Supply Voltage :

6V

Number of Elements :

1

Radiation Hardening :

No

Additional Feature :

PARALLEL OUTPUT IS LATCHED; SERIAL OUTPUT LATCHED WITH SHIFT CLOCK ALSO AVAILABLE

Min Supply Voltage :

2V

Height :

5.08mm

Terminal Position :

Dual

Family :

HC/UH

Output Characteristics :

3-STATE

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Package :

Tube

Length :

19.56mm

Supply Voltage :

4.5V

Lead Free :

Contains Lead

Quiescent Current :

8μA

Logic Function :

Latch, Shift Register

Max I(ol) :

0.0052 A

Thickness :

4.57mm

Load Capacitance :

50pF

Number of Functions :

1

Schmitt Trigger :

No

Packing Method :

Tube

Logic IC Type :

SERIAL IN PARALLEL OUT

ECCN Code :

EAR99

Temperature Grade :

Military

Mount :

Through Hole

Output Polarity :

TRUE

Max Operating Temperature :

125°C

Direction :

Unidirectional

Series :

*

Max Frequency@Nom-Sup :

4000000Hz

Width :

6.92mm

Package / Case :

CDIP

Prop. Delay@Nom-Sup :

33 ns

Pin Count :

16

Terminal Pitch :

2.54mm

Min Operating Temperature :

-55°C

Trigger Type :

POSITIVE EDGE

Number of Terminations :

16

Product Status :

Active

RoHS Status :

RoHS Compliant
