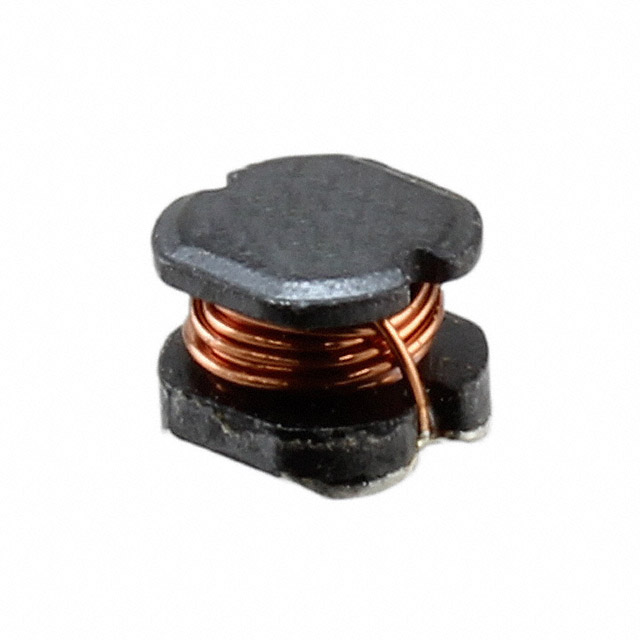

CD43NP-1R8MC

Manufacturer :

Sumida Corporation

Product Category :

Fixed Inductors

Terminal Placement :

DUAL ENDED

Inductance :

1.8μH

Test Frequency :

7.96MHz

Tolerance :

±20%

Shielding :

No

RoHS Status :

ROHS3 Compliant

Height :

3.5mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Inductor Type :

GENERAL PURPOSE INDUCTOR

Max DC Current :

2.33A

HTS Code :

8504.50.80.00

Radiation Hardening :

No

Depth :

4.3mm

Current Rating :

2.33A

DC Resistance (DCR) :

63.7mOhm Max

Shape/Size Description :

RECTANGULAR PACKAGE

ECCN Code :

EAR99

Operating Temperature :

-40°C~100°C

Mounting Type :

Surface Mount

Number of Terminations :

2

Factory Lead Time :

16 Weeks

Case/Size Code :

1816

Published :

2006

Package / Case :

Nonstandard

Series :

CD43

Mount :

Surface Mount

Number of Functions :

1

Material - Core :

Ferrite

Inductor Application :

POWER INDUCTOR

Pbfree Code :

yes

Size / Dimension :

0.177Lx0.157W 4.50mmx4.00mm

Height Seated (Max) :

0.138 3.50mm

Self Resonant Frequency :

92MHz

Packaging :

Tape and Reel (TR)

Terminal Shape :

ONE SURFACE
