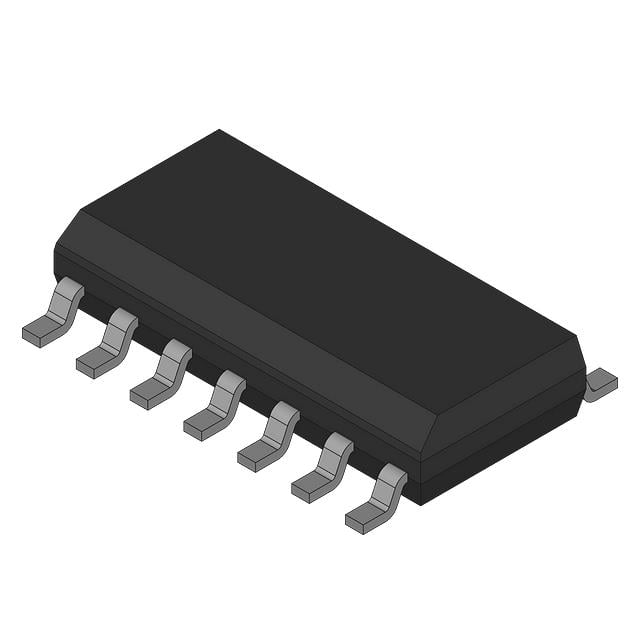

CD4071BCMX

Manufacturer :

Fairchild Semiconductor

Product Category :

Gates and Inverters

Logic IC Type :

OR Gate

Number of Functions :

4

Operating Temperature (Max) :

85°C

Operating Temperature (Min) :

-40°C

Length :

8.65mm

Qualification Status :

Not Qualified

Pin Count :

14

Terminal Position :

Dual

Surface Mount :

yes

Number of Inputs :

2

Family :

4000/14000/40000

Seated Height-Max :

1.75mm

Load Capacitance :

50pF

JESD-30 Code :

R-PDSO-G14

Terminal Form :

Gull wing

Supply Voltage :

5V

HTS Code :

8542.39.00.01

Terminal Pitch :

1.27mm

Supply Voltage-Min (Vsup) :

3V

Number of Terminals :

14

Supply Voltage-Max (Vsup) :

15V

Width :

3.9mm

Temperature Grade :

Industrial

Propagation Delay (tpd) :

250 ns
